OMK-20G Electric Actuator (DC24V 200Nm)

Product Overview

The OMK series electric actuator is engineered for high performance, featuring a compact structure, effortless installation, exceptional build quality, and extreme operational reliability.

Application Fields

Our products are extensively utilized across a wide range of industrial automation sectors, including:

• Petroleum & Petrochemical

• Chemical & Pharmaceutical

• Pulp & Paper

• Power Generation (Hydroelectric & Thermal Power)

• Metallurgy, Iron, & Steel

• Water & Wastewater Treatment

• Marine & Shipbuilding

• Power Irrigation & Drainage

• HVAC & Building Automation

• Food & Beverage Processing

Premium Component Features

• Enclosure & Housing: Made of premium ADC12 die-cast aluminum. The housing undergoes aging, shot blasting, and powder coating treatments. The powder coating thickness exceeds 0.2 mm and can withstand temperatures above 150°C.

• Worm Gear & Worm Shaft: The worm gear is forged from a custom-proportioned aluminum-bronze alloy blank and precision-machined. The output shaft and worm shaft are crafted from 40Cr steel, heat-treated, and finished with a black oxide anti-rust coating. A highly reliable spline connection is used between the output shaft and the worm gear, eliminating the risk of twisting or snapping—a common defect in integrated structures due to material and processing limitations.

• Reduction Gears: All reduction gears are precision-machined from high-quality quenched and tempered steel, offering high precision, high strength, low noise, anti-fatigue properties, and exceptional wear resistance. Both ends of the gear shafts are positioned with precision deep groove ball bearings to minimize noise and withstand strong shocks under long-term heavy loads. The reduction gearbox is die-cast from ADC12 aluminum alloy for superior strength and smoother transmission.

• Heavy-Duty Motor: To meet the demanding requirements of complex industrial sites and precise regulation, OMK motors are engineered with a safety margin of 1.3 to 1.5 times the rated torque. Special optimizations are made for temperature rise, rotational inertia, and dielectric strength, backed by rigorous repeated testing to ensure frequent start-ups under full load or even overload conditions.

• High-Precision Bearings: All bearings feature small clearance, low noise, and high precision, strictly adhering to the EMQ (ZV2) low-noise standard with a precision grade of P6. This low noise and vibration level is achieved through strict control of raceway and ball surface roughness, ring/ball roundness, and optimized retainer designs.

• Stroke Control Mechanism: Equipped with an independently developed, unique stroke control device. Users can easily adjust the open/close limit switches via the top "adjustment shaft," making on-site commissioning simpler and more precise.

• Oil Seals & O-Rings: Outfitted with premium imported German "Oubosu" (欧博斯) brand double-lip skeleton TC oil seals and sealing rings for superior leak prevention.

• Lubrication: Pre-lubricated with imported premium Mobil grease, ensuring lifelong maintenance-free operation under normal conditions.

Design, Manufacturing & Quality Control Standard

• Advanced R&D Simulation: Every component is meticulously designed by engineers with over 10 years of experience, incorporating field-proven solutions. Using UG software, full 2D/3D component and assembly modeling along with kinematic simulations are completed before creating the die-casting molds.

• Precision CNC Machining: Fine machining utilizes high-precision imported 4-axis CNC machining centers equipped with high-efficiency pneumatic fixtures. Post-machining dimensions are strictly verified using a Coordinate Measuring Machine (CMM) to ensure all tolerances meet engineering blueprints.

• Rigorous Factory Testing: Assembly strictly follows the Standard Operating Procedures (SOP). Before leaving the factory, every single unit must pass 4 rigorous stage-tests and a final inspection:

  1. Torque Test: Every assembled unit undergoes strict torque testing to verify it achieves a 1.3x safety margin above the rated torque under both rated and negative voltage conditions.

  2. Dielectric Voltage Test: Each unit is tested under 1500V high voltage. Any one of the three motor wires is connected for 1 minute; the insulation must not break down to pass.

  3. Load Durability Test: Batch sampling is conducted for extended load tests. Selected units must run continuously under full rated torque for 48 hours without failure.

  4. Airtightness & Waterproof Test: Every single actuator is submerged in water for a sealing test. Internal air pressure is pressurized to 0.2 MPa via the waterproof cable gland; it passes if no bubbles emerge within 10 minutes.

  5. Final Inspection: A dedicated Quality Assurance team performs a comprehensive final inspection on all parameters before granting the shipping clearance.

Overall Dimensions and Performance Parameters

Parameter\Performance

OMK-20

OMK-40

OMK-60

DC24V

AC110V

AC220V

AC380V

DC24V

AC110V

AC220V

AC380V

DC24V

AC110V

AC220V

AC380V

Motor Power

35W

40W

40W

30W

70W

90W

90W

40W

70W

90W

90W

40W

Rated Current

3.57A

0.65A

0.37A

0.15A

5.13A

1.12A

0.57A

0.29A

5.13A

1.18A

0.60A

0.29A

Standard Time/Torque

30S/200Nm

30S/400Nm

45S/600Nm

Optional Time / Torque

15S/100Nm

6S/150Nm 15S/200Nm

60S/400Nm

Turning Angle

0~90° Adjustable

Total Weight (kg)

8.0

8.5

9.0

Cold Insulation Resistance (MΩ)

AC110V/220V/380V: 100 MΩ/500VDC

Voltage-Withstand Class

AC110V/220V: 1500VAC one minute, AC380V: 1800VAC one minute

Protection Class

Ip67

Installation Angle

360° at any angle

Electric Interface

One G1/2 Water-proof Cable Connector (For types with 4-20mA DC, etc. control signals, add one more)

Ambient Temperature (℃)

-30℃~+60℃

Type of Control Circuit

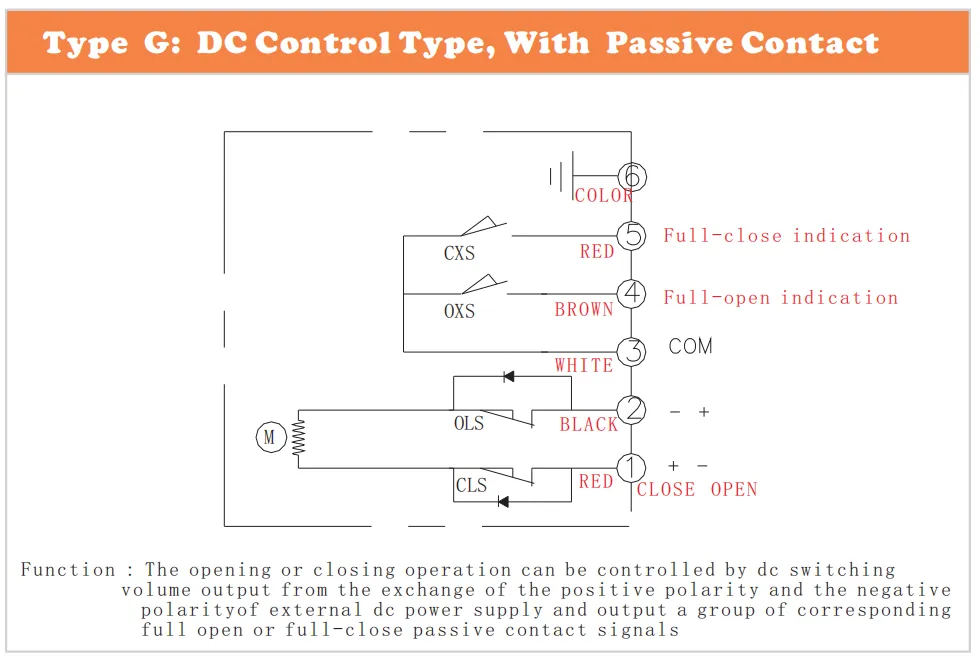

Type A:Ordinal switch type; Type B:Passive signal feedback type; Type C:Resistance signal feedback type; Type D:Resistance signal and passive signal feedback type; Type E: Adjusting type; Type F: With position transmitter; Type G: DC current control type; Type H: AC 380V power control type

Options of other function

★ Stainless steel support, coupling ★Direct installation board, coupling (ISO5211 Standard) ★Over torque protector ★Heater for eliminating moisture

Manufacturing Standards & Quality Certifications

• Industry Standard Compliance: Evaluated and certified by the Shanghai Inspection and Testing Institute for Instruments and Automation Systems. All performance indicators fully comply with the Chinese Electric Actuator Manufacturing Standard: JB/T8219-1999 (Test Report No: C16040-WT).

• International Certifications: The manufacturing facility is fully certified under the ISO9001:2008 Quality Management System and complies with European Union CE Certification standards, making the products fully compliant with global export requirements.
