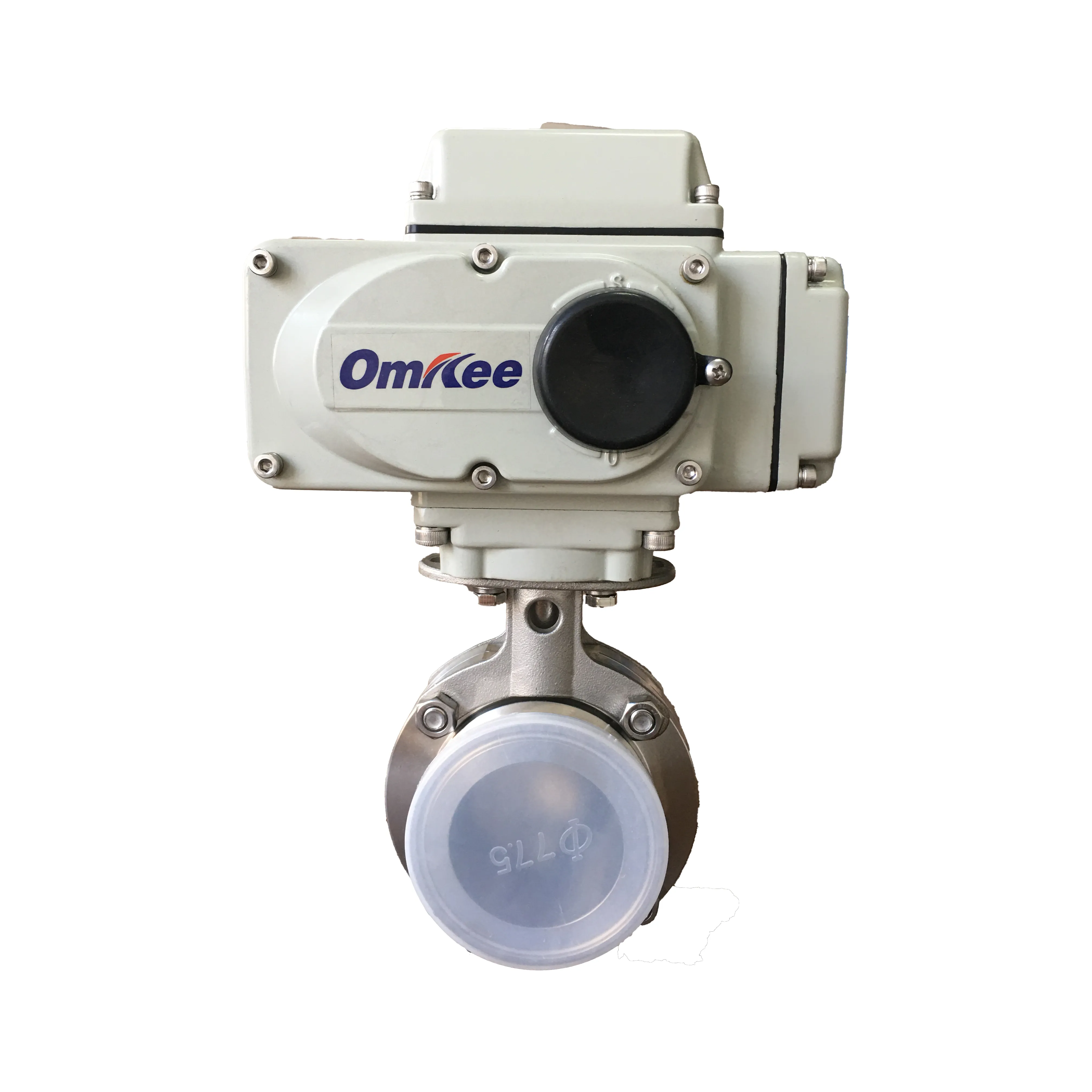

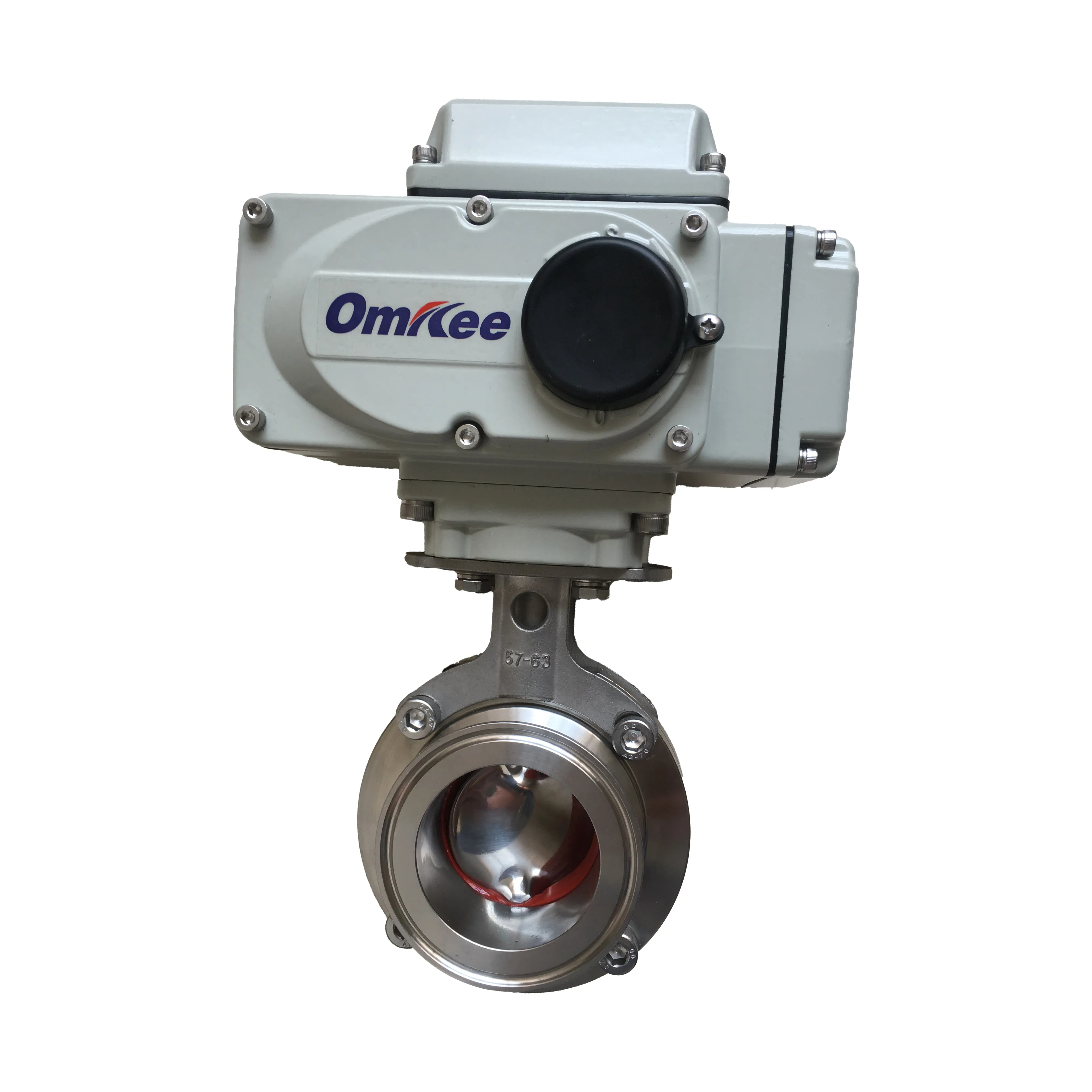

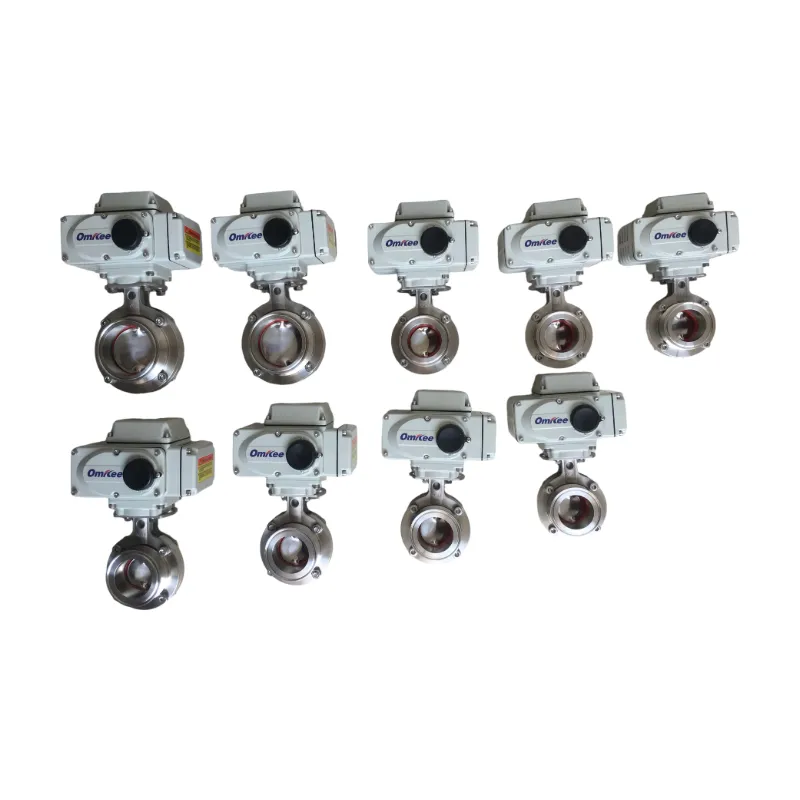

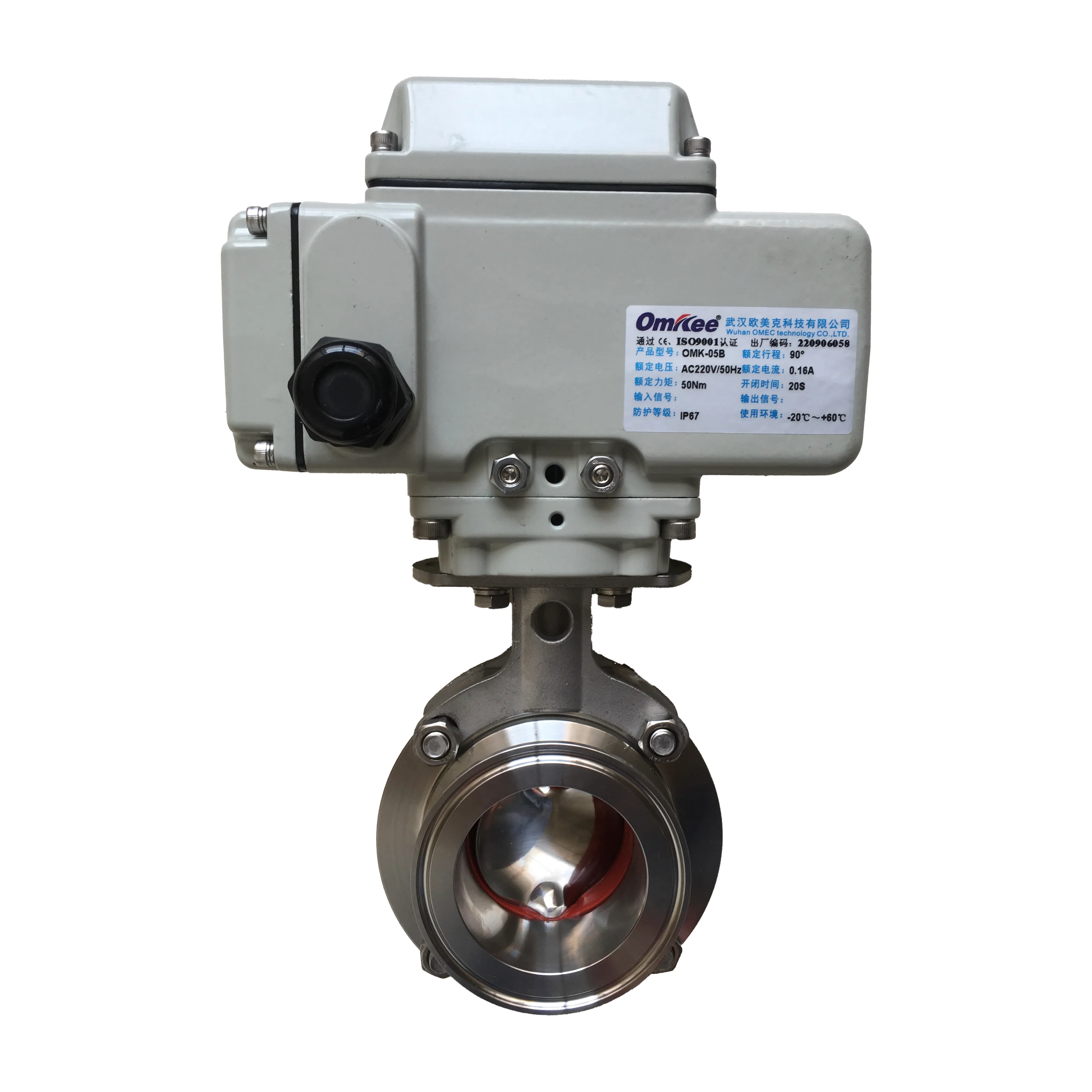

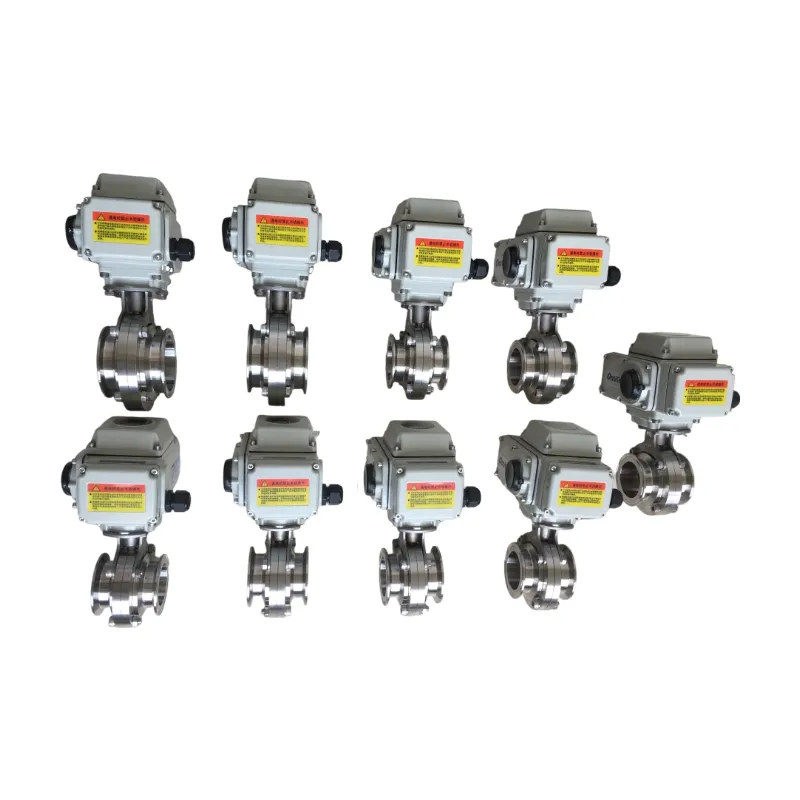

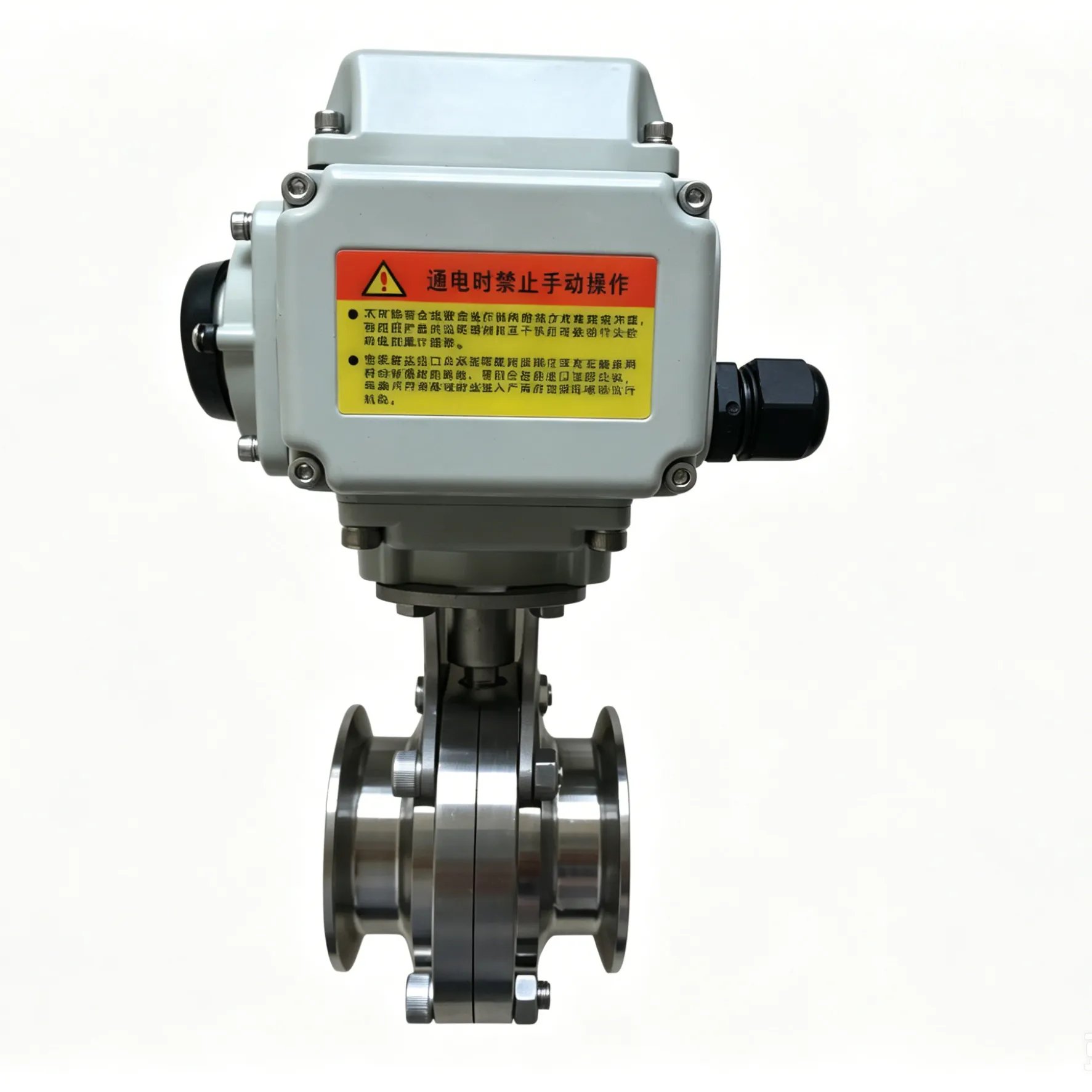

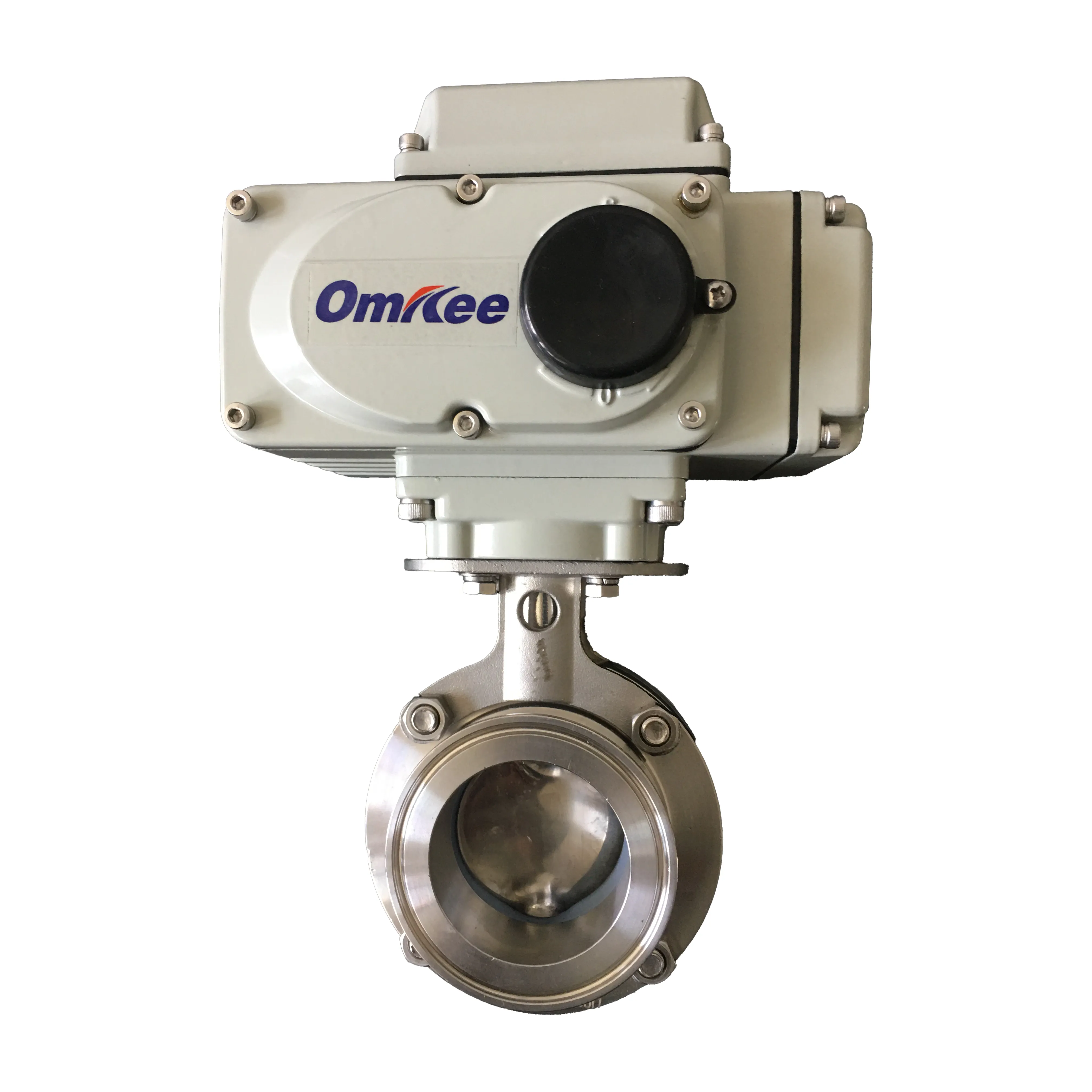

Sanitary Tri-Clamp Electric Butterfly Valve

Our Sanitary Tri-Clamp Electric Butterfly Valve provides precision automated flow control engineered specifically for zero-contamination, high-purity environments. Built from top-tier 304 or 316L stainless steel, the valve features a mirror-polished interior that prevents particulate buildup and bacterial growth.

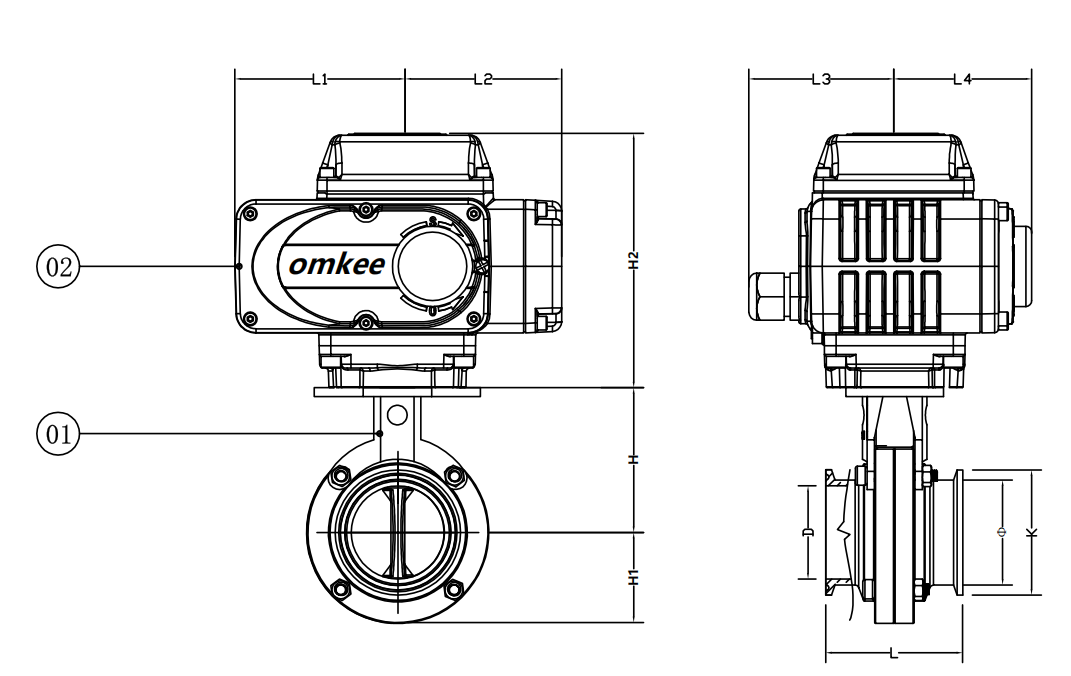

D981X-10P Dimensional Data Unit: millimeters
Φ	K	D	L	L1	L2	L3	L4	H	H1	H2	KG
19	50.5	16	66	83	83.5	73	65	66	39	129-142	4.3
25	50.5	22	66	83	83.5	73	65	66	39	129-142	4.2
32	50.5	29	66	83	83.5	73	65	66	39	129-142	4.1
38	50.5	35	66	83	83.5	73	65	66	39	129-142	4.1
45	64	42	70	83	83.5	73	65	69	43	129-142	4.3
51	64	48	70	83	83.5	73	65	74.5	46.5	129-142	4.5
57	77.5	53	76	83	83.5	73	65	83	55	129-142	4.8
63	77.5	59	76	83	83.5	73	65	83	55	129-142	4.9
76	91	72	76	83	83.5	73	65	91	62	129-142	5.2
89	106	85	80	83	83.5	73	65	95.5	69.5	129-142	5.9
102	119	98	86	83	83.5	73	65	104.5	77.5	129-142	6.7
108	119	104	86	83	83.5	73	65	104.5	77.5	129-142	7.1
114	130	110	86	83	83.5	73	65	105.5	79.5	129-142	7.6
133	145	128	100	97.5	97.5	72	72	133.5	92.5	159.5	9.8
159	183	153.5	110	121	133.5	89	94	147	107	159.5	11.7
219	233.5	214	120	121	133.5	89	94	185	143	196.5	25.2

Product Overview

Name: Sanitary Tri-Clamp Electric Butterfly Valve
SKU: CHAxViRoxXRUIzyxH0bEcg

Our Sanitary Tri-Clamp Electric Butterfly Valve provides precision automated flow control engineered specifically for zero-contamination, high-purity environments. Built from top-tier 304 or 316L stainless steel, the valve features a mirror-polished interior that prevents particulate buildup and bacterial growth.

Equipped with a standard Tri-Clamp connection, this valve allows for lightning-fast installation, removal, and tool-free maintenance. It is fully compatible with clean-in-place (CIP) and steam-in-place (SIP) systems, making it the premier choice for the dairy, beverage, brewery, pharmaceutical, and bio-tech industries.

Technical Specifications

1. Valve Body Assembly

Material Options: Premium Grade 304 or 316L Stainless Steel
Connection Interface: Standard Tri-Clamp (Quick-Release Sanitary Clamp)
Nominal Operating Pressure: $\le$ 1.0 MPa (10 Bar / 145 PSI)
Ambient Temperature Range: -10°C to +60°C (+14°F to +140°F)

2. Automated Electric Actuator

Compliance & Testing Standard: Certified to JB/T8219-1999 for industrial-process electric actuators.
Ingress Protection Rating:IP67 (Dust-proof and highly resistant to heavy washdowns and temporary submersion).
Comprehensive Voltage Availability:
- Alternating Current (AC): 24V / 110V / 220V / 380V
- Direct Current (DC): 12V / 24V
Circuit Control Layouts: Configurable in Type A, B, C, D, E, F, G, and H to meet any control logic requirement.

Circuit Control Matrix (Types A to H)

Control Architecture	Automation Profile	Feedback / Input Signals	Best Suited For
Type A / B / C	On/Off Control (Passive/Active contact)	Fully Open / Fully Closed limit switches	Rapid fluid isolation and simple automated open/close loops.
Type D / E / F	Modulating Control (Proportional)	4-20mA / 0-10V Input & Output	Precision throttling, flow rate tuning, and blending systems.
Type G / H
