Product Overview

The Sanitary Tri-Clamp Electric 3-Piece Ball Valve represents the premier solution for automated fluid isolation in high-purity, zero-contamination processing environments. Combining a robust 3-piece split-body design with advanced electrical actuation, this valve offers an optimal blend of operational reliability and easy field serviceability.

The innovative 3-piece architecture allows maintenance teams to loosen the body bolts and swing out the center portion of the valve for fast seal replacements and deep cleaning without disturbing the surrounding pipeline connections. Crafted from premium 304 or 316L stainless steel with a mirror-polished internal cavity and standard Tri-Clamp ends, it is engineered for absolute compliance with clean-in-place (CIP) and steam-in-place (SIP) protocols across the dairy, beverage, pharmaceutical, and biotechnology industries.

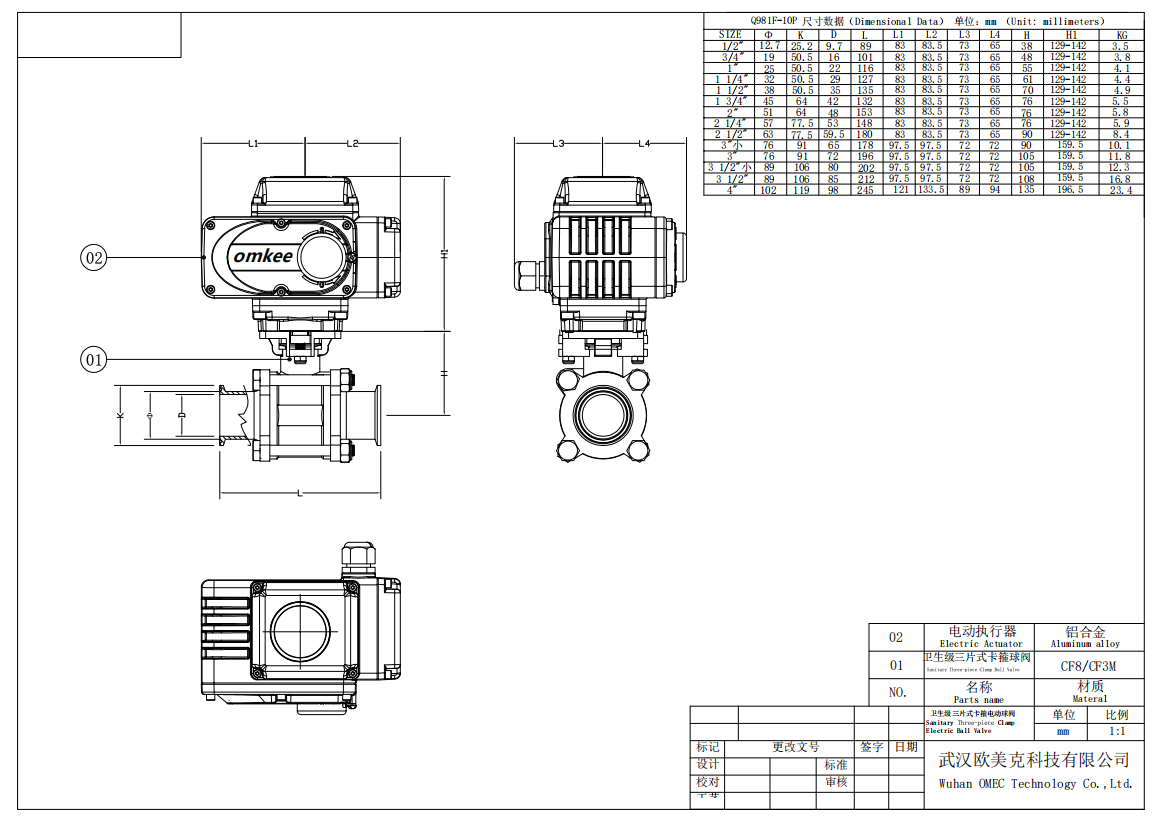

Technical Specifications

1. Valve Body Assembly

• Material Options: Premium Grade 304 or 316L Stainless Steel (polished internal surface to prevent bacterial adhesion)

• Body Structure: 3-Piece split-body configuration (swing-out design for effortless maintenance)

• Connection Interface: Standard Tri-Clamp (Quick-Release Sanitary Ferrule)

• Nominal Operating Pressure:$\le$ 1.0 MPa (10 Bar / 145 PSI)

• Ambient Temperature Range: -30°C to +60°C (-22°F to +140°F), fully optimized for sub-zero and outdoor cold-chain processing environments.

2. Automated Electric Actuator

• Compliance & Testing Standard: Certified to JB/T8219-1999 for industrial-process electric actuators.

• Ingress Protection Rating:IP67 (Dust-tight and waterproof against heavy clean-in-place washdowns).

• Comprehensive Voltage Availability:

  • Alternating Current (AC): 24V / 110V / 220V / 380V

  • Direct Current (DC): 12V / 24V

• Circuit Control Layouts: Configurable in Type A, B, C, D, E, F, G, and H wiring topologies to fit any PLC, DCS, or remote control room centralized framework. (Please refer to the separate actuator specification guide for exact electrical wiring schematics).

Circuit Control Matrix (Types A to H)

Core Product Advantages

• Unrivaled 3-Piece Serviceability: Slashes facility downtime in half. Line operators can inspect internal cavities, clean components, or swap out seals simply by loosening body bolts and swinging the center module out—leaving the clamped pipe ends completely untouched.

• Extended Low-Temperature Endurance: Specially rated to perform consistently down to -30°C, making it exceptionally dependable for refrigeration, sub-zero ingredient transport, and extreme-weather configurations.

• Heavy-Washdown Safeguard: The rugged IP67 enclosure completely encapsulates all critical electronic components and mechanical gears, ensuring smooth operation during intensive daily washdown cycles with chemical sanitizers.

• Unrestricted Full-Port Design: The true full-bore flow pathway matches pipeline internal diameters exactly, minimizing pressure drops, preventing fluid turbulence, and eliminating hidden pockets where product could stagnate or spoil.

Primary Industries & Applications

• Hygienic Processes: Dairy processing, commercial breweries, wineries, soft drink production, and liquid food packaging lines.

• Pharmaceutical & Biotech: Purified Water (PW) distribution, Water for Injection (WFI) loops, and sterile chemical ingredient batching.

• Fine Chemicals & Cosmetics: Automated handling of raw ingredients, personal care product blending, and precise active ingredient distribution.

• Automated CIP/SIP Hubs: Automated routing and distribution of chemical wash streams, high-temperature sanitizing waters, and clean steam lines.
