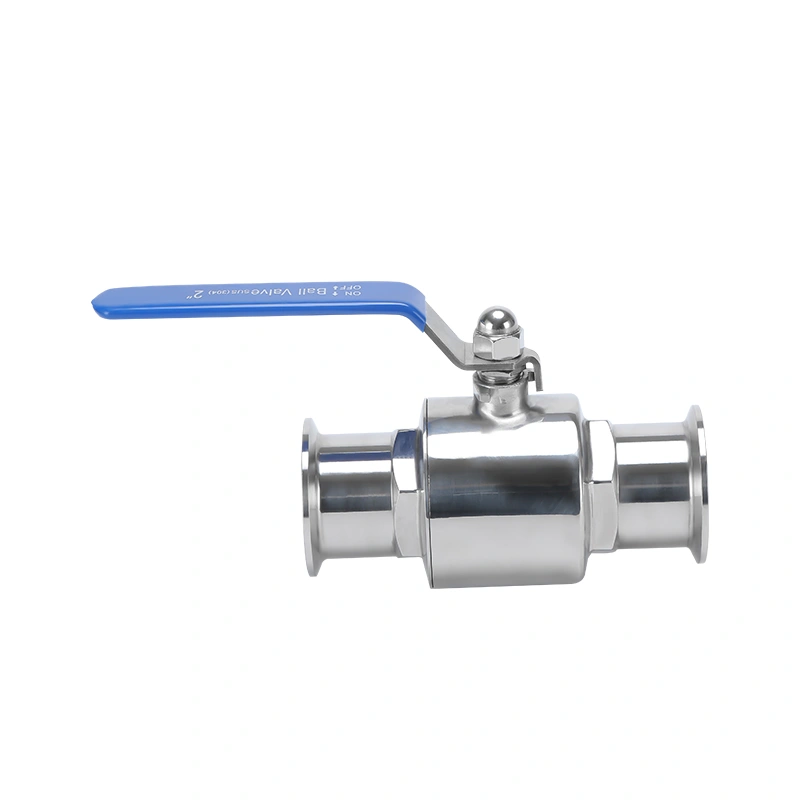

Sanitary Manual Tri-Clamp 2-Way Ball Valve

The Sanitary Manual Tri-Clamp 2-Way Ball Valve is a premium-grade fluid isolation component meticulously engineered for high-purity pipelines requiring secure, reliable manual control. Designed with a true full-port flow path, it allows fluids to pass through completely unobstructed, minimizing pressure drop and turbulences.

Product Overview

Name: Sanitary Manual Tri-Clamp 2-Way Ball Valve
SKU: 4Sl3zmrxSkIE_nC9pBMJvw

TheSanitary Manual Tri-Clamp 2-Way Ball Valveis a premium-grade fluid isolation component meticulously engineered for high-purity pipelines requiring secure,reliable manual control.Designed with a true full-port flow path,it allows fluids to pass through completely unobstructed,minimizing pressure drop and turbulences.

The valve housing is constructed from high-quality stainless steel with a high-precision mirror-polished internal cavity to eliminate any crevice or pitting where media could stagnate.Equipped with universal quick-connect sanitary Tri-Clamp ends,this valve provides exceptional sealing integrity and effortless maintenance for the food,dairy,beverage,brewery,biopharmaceutical,and fine chemical processing industries.

Technical Requirements & Compliance Standards

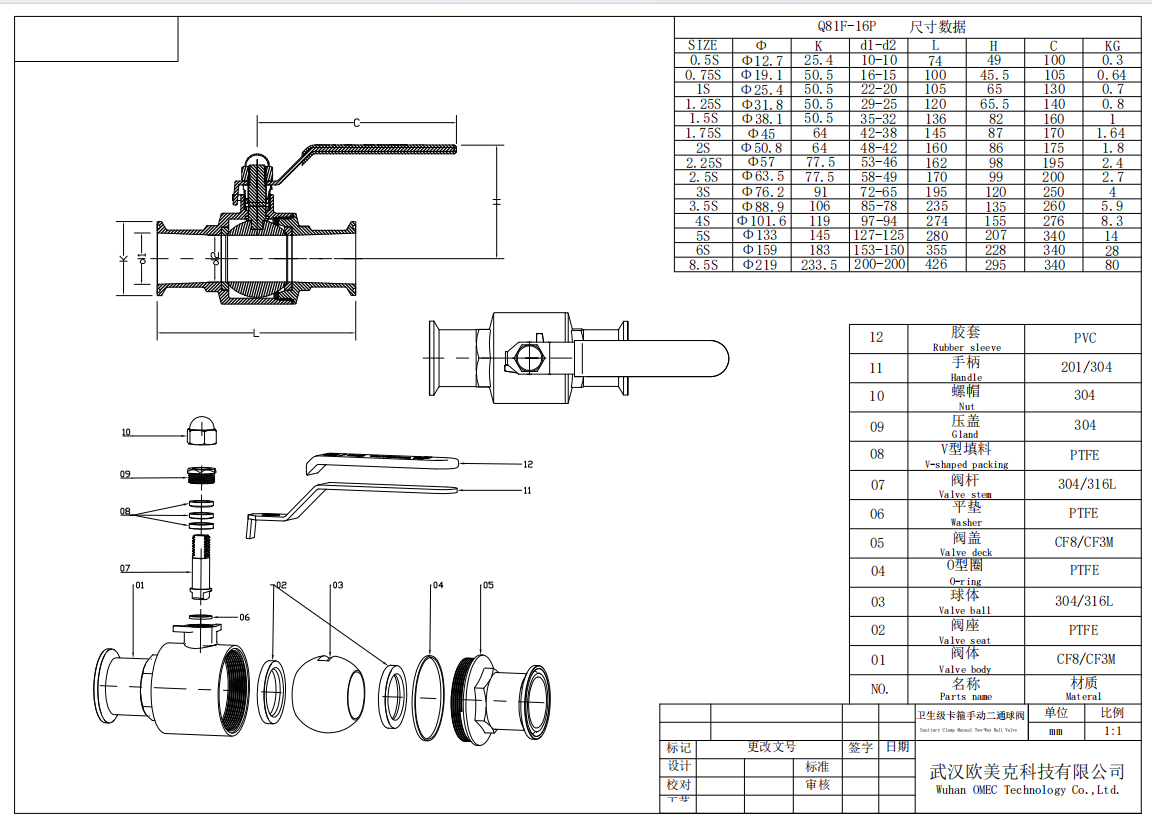

1. Structural Length & Face-to-Face Dimensions

Face-to-Face Standard:Manufactured in strict accordance with theManufacturer’s Standard (Factory Standard),maximizing structural compactness and minimizing pipeline layout footprint.

2. Connection Interface

Connection Type:Clamp-type / Tri-Clamp
Compliance Standard:Built to exactISO 2852-93specifications(Stainless steel clamp pipe couplings for the food industry),ensuring absolute geometric interchangeability with standard hygienic process lines worldwide.

3. Design & Manufacturing Framework

Design Standard:Engineered and fabricated in full compliance withGB/T 12237-2008(Stainless steel ball valves for petroleum, petrochemical and allied industries / adapted for high-purity sanitary specifications).Features include a heavy-duty wall thickness,stable torque parameters,and a blowout-proof stem safety system.

4. Inspection & Pressure Testing

Testing Standard:100% inspected and pressure-tested under the rigorous rules ofGB/T 13927-2008(Industrial valves - Pressure testing).Each unit undergoes shell and seat tests to guarantee absolute bubble-tight shutoff prior to shipping.

Technical Specifications

Parameter	Specifications & Standards
Valve Type	2-Way Full-Port Ball Valve
Operation Mode	Manual Handle (Lever handle with manual locking option)
Body Material	Grade 304 or 316L Stainless Steel
Sealing / Seat Material	High-Purity PTFE (Teflon - FDA approved)
Connection Standard	ISO 2852-93 (Quick-install Tri-Clamp)
Nominal Pipeline Pressure	$\le$ 1.0 MPa (10 Bar / 145 PSI)
Internal Surface Finish	$Ra < 0.4\,\mu\text{m} - 0.8\,\mu\text{m}$ (Mirror Polished)
Applicable Media	Milk, Beer, Wine, Beverages, Water, Pharmaceuticals, Corrosive Chemicals

Core Product Advantages

Pocket-Free Full-Port Flow:The valve bore aligns perfectly with the pipe inner diameter.Combined with a polished internal surface,it ensures maximum fluid dynamics and full compatibility with stringent Clean-in-Place (CIP) or Steam-in-Place (SIP) operations.
Ergonomic Manual Lever: Features a heavy-duty manual lever handle that delivers a smooth, low-torque operating feel while offering sharp open/close position indication.
Rapid Tri-Clamp Serviceability: The quick-coupling style allows operators to drop the valve from the system lines within minutes for scheduled seal inspections or deep cleanings without line cutting.
Flawless Sealing Assurance: 100% compliance with GB/T 13927-2008 testing parameters ensures total pressure containment and zero risk of cross-contamination during batch processing loops.

Primary Fields of Application

Hygienic Fluid Lines: Automated or manual dairy production, commercial breweries, winemaking, soft drinks, and liquid food packaging lines.

Pharmaceuticals & Cosmetics: Purified Water (PW) loops, Water for Injection (WFI)
