Sanitary Direct-Mount Tri-Clamp Butterfly Valve

The Sanitary Direct-Mount Tri-Clamp Butterfly Valve (High-Platform Type) is engineered specifically for premium hygienic processing and effortless automation. Featuring an integrated high-platform ISO 5211 mounting pad, this valve allows for the direct installation of electric or pneumatic actuators without the need for external brackets or couplings. This design significantly reduces structural play, saves space, and ensures highly precise flow control.

Product Overview

Name: Sanitary Direct-Mount Tri-Clamp Butterfly Valve
SKU: ia4ODejxL1JqjZQnyMPyPw

The Sanitary Direct-Mount Tri-Clamp Butterfly Valve (High-Platform Type) is engineered specifically for premium hygienic processing and effortless automation. Featuring an integrated high-platform ISO 5211 mounting pad, this valve allows for the direct installation of electric or pneumatic actuators without the need for external brackets or couplings. This design significantly reduces structural play, saves space, and ensures highly precise flow control.

Built from high-purity stainless steel and featuring a mirror-polished internal flow path, it entirely prevents fluid retention and bacterial growth. The standard quick-release Tri-Clamp configuration ensures rapid pipeline integration, making it the perfect automated valve hub for dairy, brewery, food processing, pharmaceutical, and biotechnology industries.

Technical Requirements & Compliance Standards

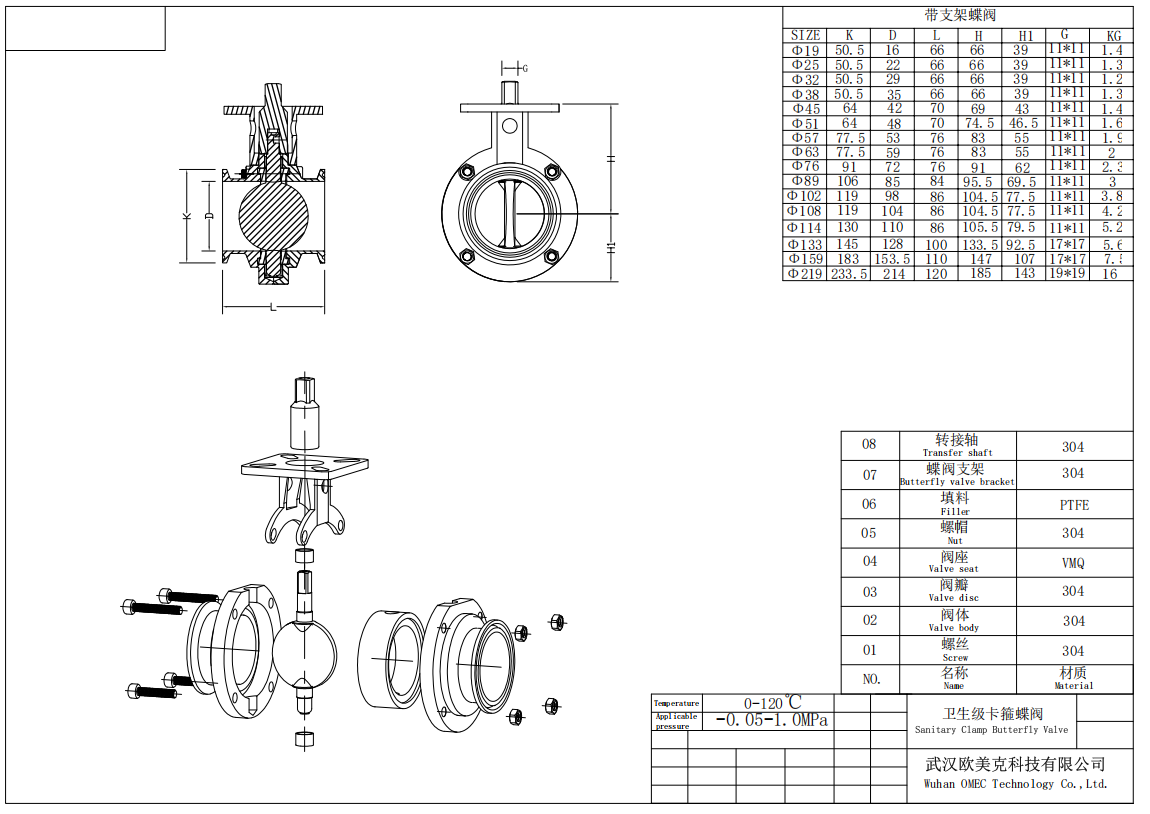

1. Structure & Face-to-Face Dimensions

Face-to-Face Standard: Manufactured in strict accordance with Manufacturer’s Standard (Factory Standard) for optimized, compact structural length and minimal pipeline footprint.

2. Connection Interface

Connection Type: Clamp-type / Tri-Clamp
Compliance Standard: Manufactured to ISO 2852-93(Stainless steel clamp pipe couplings for the food industry), ensuring complete geometric interchangeability with international hygienic piping systems.

3. Design & Manufacturing Framework

Design Standard: Engineered and built according to GB/T 12239-2008(Industrial valves - General specifications for diaphragm valves / specialized sanitary quarter-turn configurations), guaranteeing robust structural integrity, pressure containment, and smooth torque profiles.

4. Inspection & Pressure Testing

Testing Standard: 100% inspected and pressure-tested under GB/T 13927-2008(Industrial valves - Pressure testing). This ensures zero leakage across the seat and shell, confirming exceptional seal reliability prior to shipment.

Core Product Advantages

Direct-Mount Platform (ISO 5211): Eliminates brackets and joint extensions. Actuators bolt directly onto the valve platform, lowering automation costs, reducing the overall footprint, and stabilizing torque transmission.
Global Hygienic Compliance: The ISO 2852-93 clamp connection ensures worldwide compatibility and rapid, tool-free disassembly for routine clean-in-place (CIP) or manual washdowns.
Rigorous Testing Quality: Adherence to GB/T 13927-2008 testing guarantees that each valve delivers absolute bubbles-tight shutoff under nominal operating pressures, preventing cross-contamination in batch processing.
Ultra-Smooth Interior: The polished, pocket-free flow profile guarantees optimal fluid dynamics with minimal pressure drops and zero dead legs where media could stagnate.

Primary Fields of Application

Hygienic Processes: Milk and Dairy processing, Breweries, Wineries, Soft Drinks, and Liquid Food packaging.
Pharmaceutical & Biotech: Purified Water (PW) loops, Water for Injection (WFI) systems, and sterile media batching.
Fine Chemicals & Cosmetics: Automated ingredient routing, dosing, and personal care product manufacturing.
Automated CIP/SIP Hubs: Direct routing of sanitizing chemicals, steam lines, and purified rinse waters.
