Product Overview

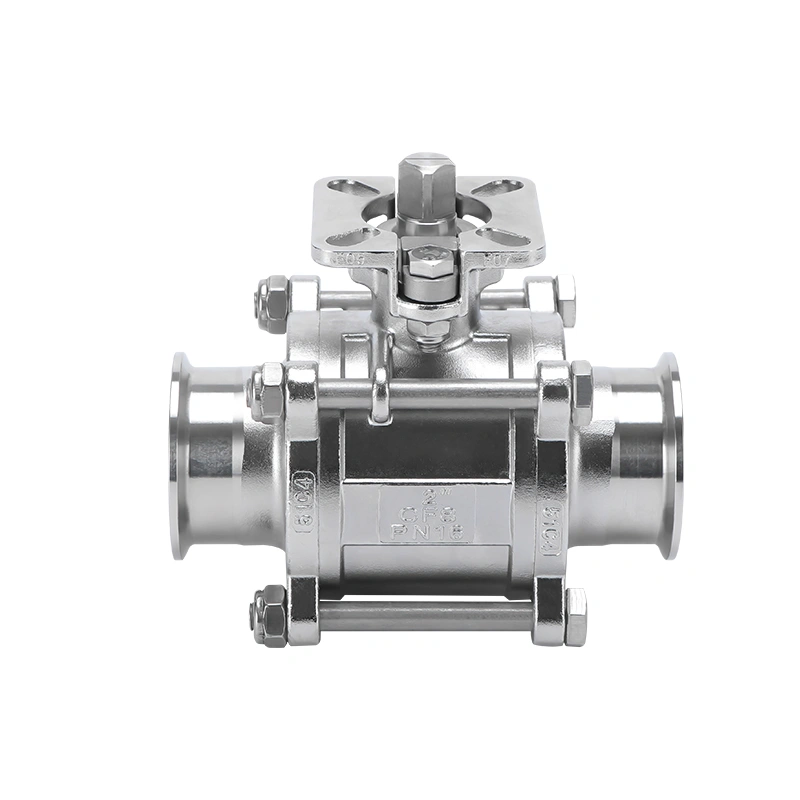

The Sanitary Direct-Mount Tri-Clamp 3-Piece Ball Valve represents the pinnacle of hygienic valve design, offering a unique blend of robust construction, hassle-free field maintenance, and effortless automation. Built with an integrated ISO 5211 high-platform mounting pad, it allows electric or pneumatic actuators to be bolted directly to the valve body, removing the need for space-consuming brackets or external couplings while maximizing torque efficiency.

The innovative 3-Piece body design provides unparalleled serviceability. By simply removing body bolts, the center section of the valve can swing out of the pipeline for rapid seal replacements or deep cleaning without cutting or disturbing the surrounding Tri-Clamp connections. Crafted from premium stainless steel with mirror-polished internal finishes, it is the ultimate automated isolation solution for dairy, brewery, food processing, pharmaceutical, and biotechnology operations.

Technical Requirements & Compliance Standards

1. Structure & Face-to-Face Dimensions

• Face-to-Face Standard: Manufactured in strict accordance with the Manufacturer’s Standard (Factory Standard) for an optimized, compact structural length and minimal pipeline footprint.

2. Connection Interface

• Connection Type: Clamp-type / Tri-Clamp

• Compliance Standard: Manufactured to ISO 2852-93(Stainless steel clamp pipe couplings for the food industry), ensuring complete geometric compatibility and quick, tool-free alignment with international hygienic piping networks.

3. Design & Manufacturing Framework

• Design Standard: Engineered and built in full compliance with GB/T 12237-2008(Stainless steel ball valves for petroleum, petrochemical and allied industries / adapted for general sanitary application specs), ensuring heavy-duty pressure containment, blowout-proof stem configurations, and precise quarter-turn torque control.

4. Inspection & Pressure Testing

• Testing Standard: 100% inspected and pressure-tested under GB/T 13927-2008(Industrial valves - Pressure testing). This guarantees absolute bubble-tight sealing performance across the seating surfaces and zero external housing leakage under nominal operating conditions.

Core Product Advantages

• Heavy-Duty 3-Piece Architecture: The three-piece split body design splits maintenance labor in half. Line operators can service internal cavities or change seats swiftly by loosening body bolts and swinging the center portion out, minimizing facility downtime.

• Direct-Mount Actuation Platform: Features an integrated ISO 5211 high platform. Actuators connect seamlessly to the valve stem, minimizing mechanical backlash, stabilizing automated operations, and saving valuable cleanroom space.

• Unrestricted Full-Port Flow: The true full-bore fluid pathway matches internal pipe diameters exactly, ensuring zero flow resistance, minimal pressure drop, and completely pocket-free performance during CIP (Clean-in-Place) sanitation cycles.

• Flawless Sealing Integrity: Adherence to GB/T 13927-2008 standards guarantees reliable cross-contamination prevention, sealing tightly even during critical pressure spikes in multi-product batching.

Primary Fields of Application

• Hygienic Processes: High-viscosity liquid foods, dairy lines, craft breweries, winemaking, and soft drink production.

• Pharmaceutical & Biotech: Purified Water (PW) distribution, sterile ingredient batching lines, and personal care product dosing.

• Fine Chemicals & Cosmetics: Automated handling of sensitive raw materials, personal care mixing, and precise active ingredient distribution.

• Automated CIP/SIP Hubs: Automated routing and distribution of chemical wash streams, high-temperature sanitizing waters, and clean steam lines.
