Product Overview

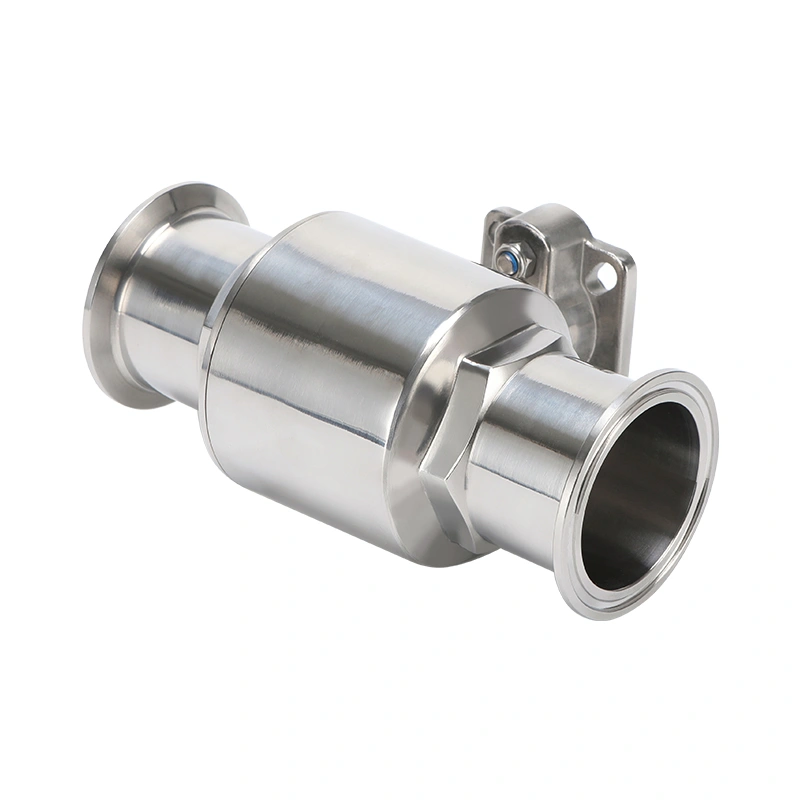

The Sanitary Direct-Mount Tri-Clamp 2-Way Ball Valve (High-Platform Type) is a premier fluid control valve engineered specifically for high-purity applications requiring automated on/off isolation. Featuring an integrated high-platform ISO 5211 mounting pad, this valve allows electric or pneumatic actuators to be bolted directly onto the valve body without requiring external brackets or drive couplings. This specialized design minimizes mechanical backlash, significantly saves installation space, and provides highly stable automation.

Constructed with a full-port design and a mirror-polished interior flow path, it eliminates dead spaces and prevents fluid retention or bacterial growth. Paired with global standard quick-release Tri-Clamp ends, it is the ideal automated isolation valve for the dairy, beverage, brewery, pharmaceutical, and biotechnology industries.

Technical Requirements & Compliance Standards

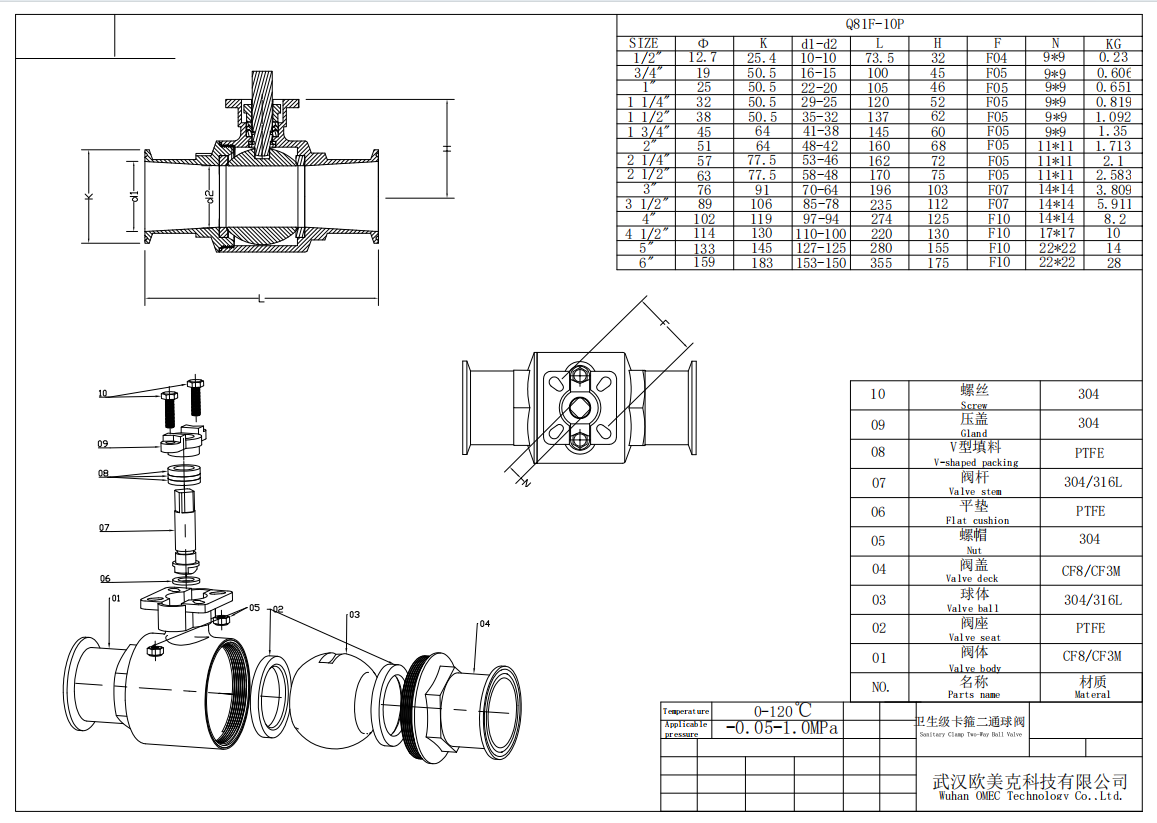

1. Structure & Face-to-Face Dimensions

• Face-to-Face Standard: Manufactured in strict accordance with the Manufacturer’s Standard (Factory Standard) for an optimized, compact structural length and minimal pipeline footprint.

2. Connection Interface

• Connection Type: Clamp-type / Tri-Clamp

• Compliance Standard: Manufactured to ISO 2852-93(Stainless steel clamp pipe couplings for the food industry), ensuring total geometric compatibility and seamless interchangeability with global hygienic piping networks.

3. Design & Manufacturing Framework

• Design Standard: Engineered and built in full compliance with GB/T 12237-2008(Stainless steel ball valves for petroleum, petrochemical and allied industries / adapted for general sanitary application specs), guaranteeing robust structural wall thickness, blowout-proof stem safety, and excellent torque profiles.

4. Inspection & Pressure Testing

• Testing Standard: 100% inspected and pressure-tested under GB/T 13927-2008(Industrial valves - Pressure testing). This ensures absolute bubble-tight sealing across the valve seat and zero leakage through the shell housing prior to leaving the factory.

Core Product Advantages

• Direct-Mount Actuation Platform: Designed with a built-in high platform complying with ISO 5211. Actuators connect directly to the stem, reducing the automation footprint, lowering structural stress, and eliminating the extra costs of brackets and adapters.

• Non-Retentive Full-Port Flow: The full-bore design matches the pipeline diameter perfectly, delivering unrestricted flow with minimal pressure drop. The internal cavity features smooth, polished finishes that facilitate thorough CIP (Clean-in-Place) sanitation.

• Global Sanitary Interchangeability: The ISO 2852-93 clamp connection ensures tool-free assembly and rapid line breakdown for manual washdowns or quick seal replacements.

• Zero Leakage Assurance: Compliance with the rigorous testing standards of GB/T 13927-2008 guarantees reliable pressure containment and reliable batch-to-batch product isolation.

Primary Fields of Application

• Hygienic Processes: Milk and Dairy lines, Wineries, Craft Breweries, Soft Drinks, and Liquid Food filling.

• Pharmaceutical & Biotech: Purified Water (PW) loops, Water for Injection (WFI) generation, and sterile ingredient batching.

• Fine Chemicals & Cosmetics: Automated ingredient routing, personal care product blending, and precise chemical dosing.

• Automated CIP/SIP Hubs: Directional routing of sanitizing acids, alkalis, high-temperature steam lines, and purified rinse streams.
