Product Overview

The Q985F-10P / Φ76 Sanitary Tri-Clamp Electric 3-Way Ball Valve is a high-performance automated fluid control solution engineered for flow diversion, mixing, and multi-directional routing. Powered by the reliable Omkee OMK-10B Electric Actuator, this multi-port valve assembly features a space-saving structure, effortless installation, and outstanding long-term durability.

The valve assembly is constructed with a premium 304 stainless steel body featuring a Φ76mm tube outer diameter and standard quick-release Tri-Clamp connections, making it fully compatible with clean-in-place (CIP) protocols. Available in both L-Type and T-Type flow architectures, this system provides versatile fluid path management across an exceptionally broad array of sanitary, automated, and heavy industrial applications.

Technical Specifications

1. Automated Electric Actuator

• Brand: Omkee (Wuhan Omkee)

• Actuator Model: OMK-10B

• Compliance Standard: Manufactured in strict accordance with JB/T8219-1999 for industrial-process electric actuators.

• Product Features: Compact structure, convenient installation, superior build quality, and exceptional operational reliability.

• Comprehensive Voltage Availability: DC24V / AC24V / AC110V / AC220V / AC380V

• 90° Travel Time & Output Torque: 30 Seconds / 100 N·m

• Ingress Protection Rating:IP67 (Dust-tight and waterproof against high-pressure washdowns and temporary submersion)

• Dielectric Strength (Withstand Voltage): * AC110V / AC220V: AC1500V for 1 minute

  • AC380V: AC1800V for 1 minute

• Electrical Interface: 1 × G1/2" Waterproof cable gland

• Ambient Temperature Range: -20°C to +60°C (Special sub-zero configurations below -20°C can be custom-engineered upon request during ordering)

• Circuit Control Mode:On/Off Type with Passive Contact Signal Feedback (Executes full open/close operations via AC/DC switching controls, and outputs one set of dry/passive contact signals corresponding to the fully open and fully closed positions).

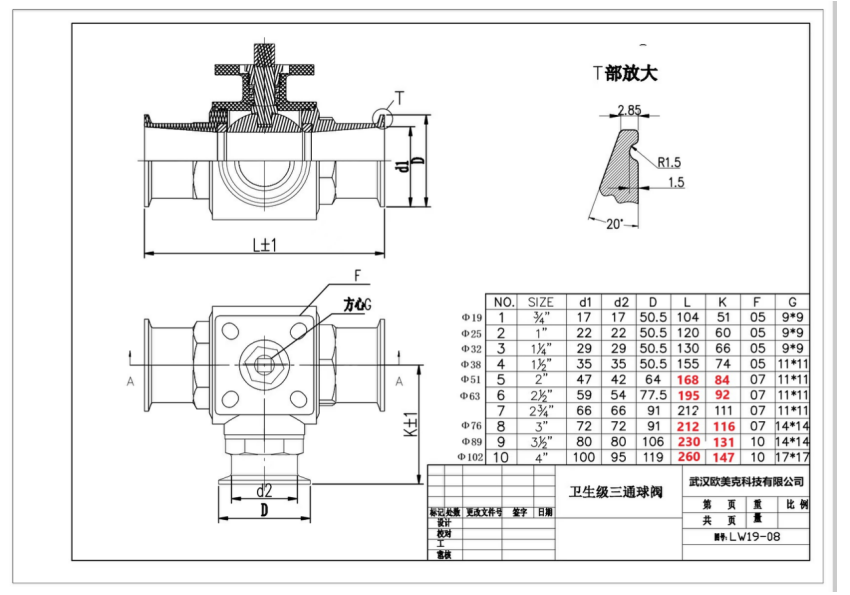

2. Sanitary 3-Way Ball Valve Assembly

• Model Designation: Q985F-10P

• Valve Structure Options:L-Type (Directional switching/diversion) or T-Type (Mixing, blending, and multi-port routing) optional

• Valve Body Material: Grade 304 Stainless Steel

• Valve Ball Material: Grade 304 Stainless Steel

• Valve Stem Material: Grade 304 Stainless Steel

• Sealing Material: PTFE (Teflon - highly resistant to chemicals, wear, and thermal stress)

• Tube Outer Diameter (OD): Φ76 mm

• Connection Type: Clamp-type / Tri-Clamp (Quick-install ferrule connection)

• Manufacturing Standard: GB (Chinese National Standard)

• Nominal Pipeline Pressure:$\le$ 1.0 MPa (10 Bar / 145 PSI)

Core Product Advantages

• Robust Torque Performance: The Omkee OMK-10B actuator outputs a stable 100 N·m of torque with a smooth 30-second cycle time, preventing water hammer risks during automated shifting on Φ76 process lines.

• Passive Contact Feedback: Simplifies PLC, DCS, and control room monitoring by providing isolated, voltage-free feedback signals for both full-open and full-close status verification.

• Premium Hygienic Integrity: High-grade 304 stainless steel coupled with durable PTFE seals ensures a non-toxic flow pathway, resistance to corrosive media, and compliance with strict sanitary protocols.

• Rapid Tri-Clamp Serviceability: Allows operators to remove and dismantle the valve from the system lines within minutes for inspection, cleaning, or seal replacement without specialized tools.

Primary Fields of Application

This versatile automated valve assembly is widely utilized across a vast range of heavy industries, automation networks, and processing environments:

• Hygienic Processes: Food Processing, Beverage Production, Breweries, and Pharmaceuticals.

• Chemical & Heavy Industry: Petroleum, Petrochemicals, Fine Chemicals, Papermaking, and Metallurgy.

• Energy & Power Generation: Hydroelectric power plants, Wind power stations, and Thermal power generation.

• Infrastructure & Water Systems: Water Treatment facilities, Drainage & Irrigation, Steel Mills, and Marine/Shipbuilding applications.

• Smart Infrastructure: Advanced Building Automation Systems (BAS).
