Product Overview

The Q985F-10P / Φ63 Sanitary Tri-Clamp Electric 3-Way Ball Valve is a premium industrial-grade fluid control solution engineered for automated flow diversion, mixing, and multi-directional isolation. Driven by the robust Omkee OMK-10 Electric Actuator, this assembly delivers a powerful 100 N·m torque output in a space-saving structure, combining superior build quality with long-term field reliability.

The valve features a heavy-duty 304 stainless steel body with a Φ63mm tube outer diameter and standard quick-release Tri-Clamp connections, ensuring rapid maintenance and total compliance with clean-in-place (CIP) protocols. Available with both L-Type and T-Type flow architectures and 6 customizable actuator control options, it provides precise fluid path management across a diverse range of demanding industrial applications.

Technical Specifications

1. Automated Electric Actuator

• Brand: Omkee (Wuhan Omkee)

• Actuator Model: OMK-10

• Compliance Standard: Manufactured in strict accordance with JB/T8219-1999 for industrial-process electric actuators.

• Product Features: Compact profile, highly convenient installation, premium component quality, and exceptional operational dependability.

• Comprehensive Voltage Availability: DC24V / AC24V / AC110V / AC220V / AC380V

• 90° Travel Time & Output Torque: 30 Seconds / 100 N·m

• Ingress Protection Rating:IP67 (Dust-tight and waterproof against high-pressure washdowns and temporary submersion)

• Dielectric Strength (Withstand Voltage): * AC110V / AC220V: AC1500V for 1 minute

  • AC380V: AC1800V for 1 minute

• Electrical Interface: 1 × G1/2" Waterproof cable gland

• Ambient Temperature Range: -20°C to +60°C (Special sub-zero configurations below -20°C can be custom-engineered upon request during ordering)

• Control Configurations:6 Distinct Control Modes Available (Configurable to support basic on/off switching, active/passive signal feedback, proportional modulating control, and digital intelligent bus systems to match any PLC/DCS architecture).

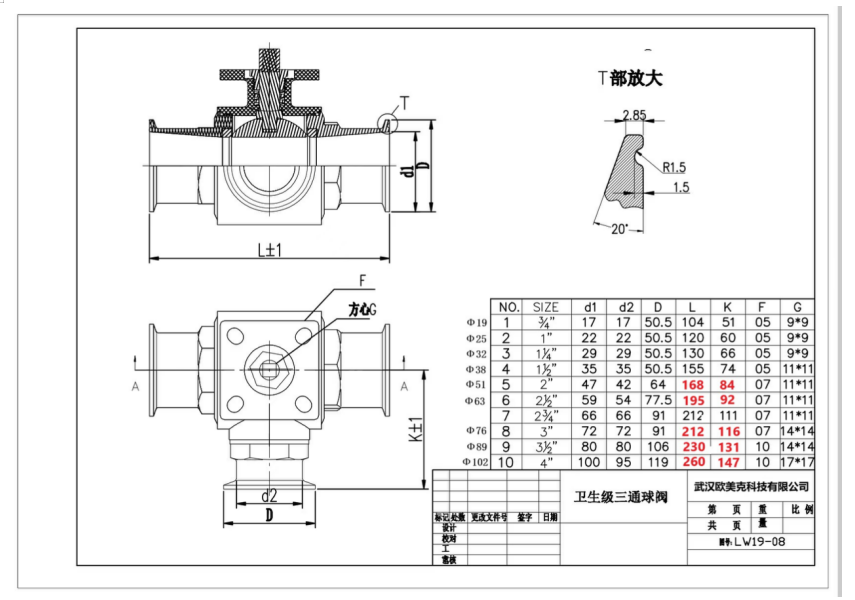

2. Sanitary 3-Way Ball Valve Assembly

• Model Designation: Q985F-10P

• Valve Structure Options:L-Type (Directional switching/diversion) or T-Type (Mixing, blending, and multi-port routing) optional

• Valve Body Material: Grade 304 Stainless Steel

• Valve Ball Material: Grade 304 Stainless Steel

• Valve Stem Material: Grade 304 Stainless Steel

• Sealing Material: PTFE (Teflon - highly resistant to chemicals, wear, and thermal stress)

• Tube Outer Diameter (OD): Φ63 mm

• Connection Type: Clamp-type / Tri-Clamp (Quick-install ferrule connection)

• Manufacturing Standard: GB (Chinese National Standard)

• Nominal Pipeline Pressure:$\le$ 1.0 MPa (10 Bar / 145 PSI)

Core Product Advantages

• High-Torque Performance: The Omkee OMK-10 actuator outputs 100 N·m of torque with a smooth 30-second cycle time, ensuring steady, reliable valve shifting on Φ63 process lines while mitigating water hammer risks.

• 6 Versatile Control Modes: Unmatched control adaptability makes it simple to integrate this valve into standard electrical grids, proportional loop-control setups, or decentralized factory automation environments.

• Premium Hygienic Integrity: High-grade 304 stainless steel coupled with durable PTFE seals ensures a non-toxic flow pathway, resistance to corrosive media, and compliance with strict sanitary protocols.

• Rapid Tri-Clamp Serviceability: Allows operators to remove and dismantle the valve from the system lines within minutes for inspection, cleaning, or seal replacement without specialized tools.

Primary Fields of Application

This versatile automated valve assembly is widely utilized across a vast range of heavy industries, automation networks, and processing environments:

• Hygienic Processes: Food Processing, Beverage Production, Breweries, and Pharmaceuticals.

• Chemical & Heavy Industry: Petroleum, Petrochemicals, Fine Chemicals, Papermaking, and Metallurgy.

• Energy & Power Generation: Hydroelectric power plants, Wind power stations, and Thermal power generation.

• Infrastructure & Water Systems: Water Treatment facilities, Drainage & Irrigation, Steel Mills, and Marine/Shipbuilding applications.

• Smart Infrastructure: Advanced Building Automation Systems (BAS).
