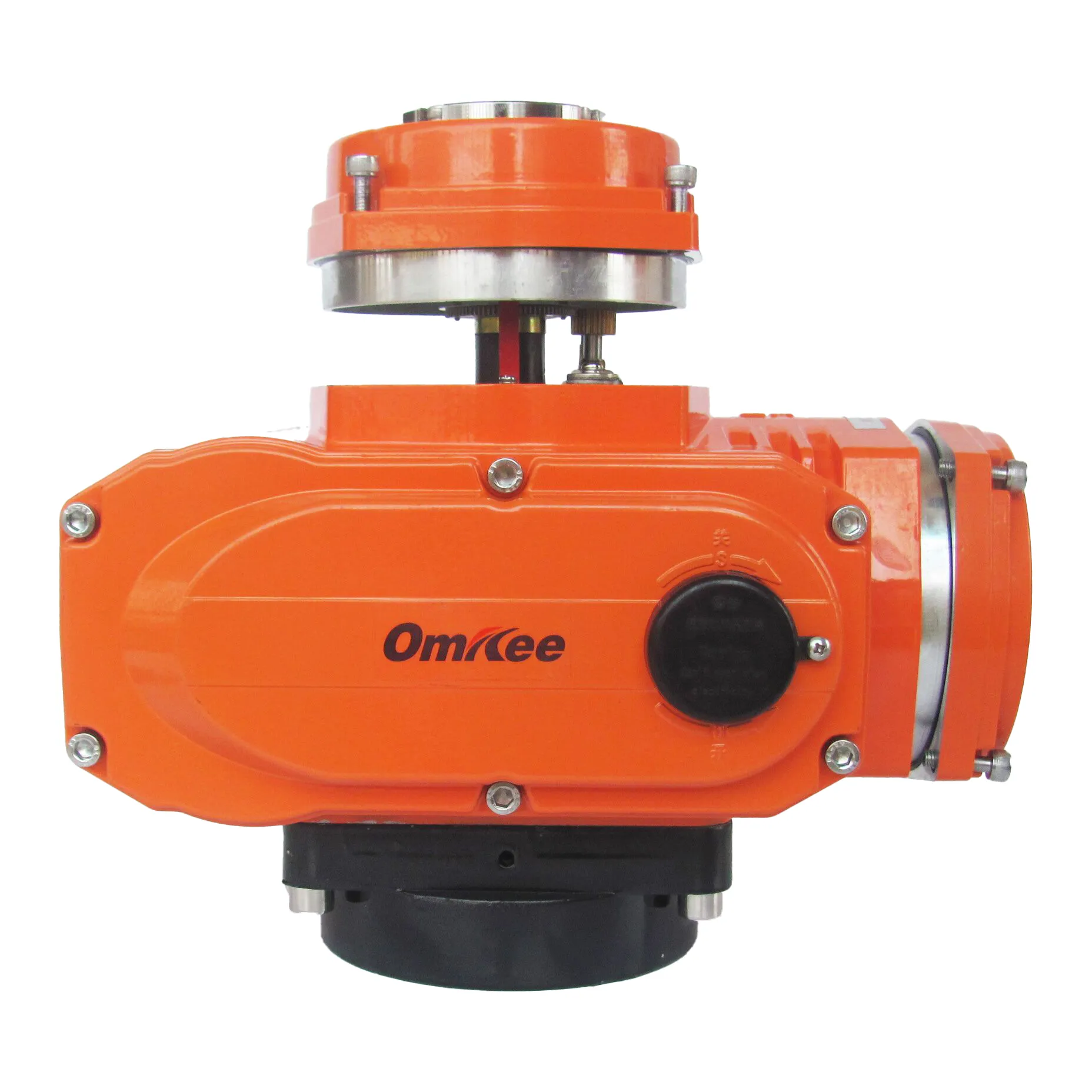

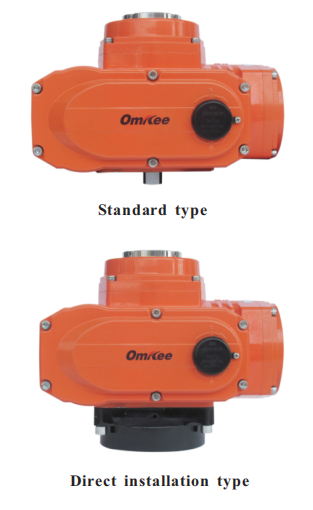

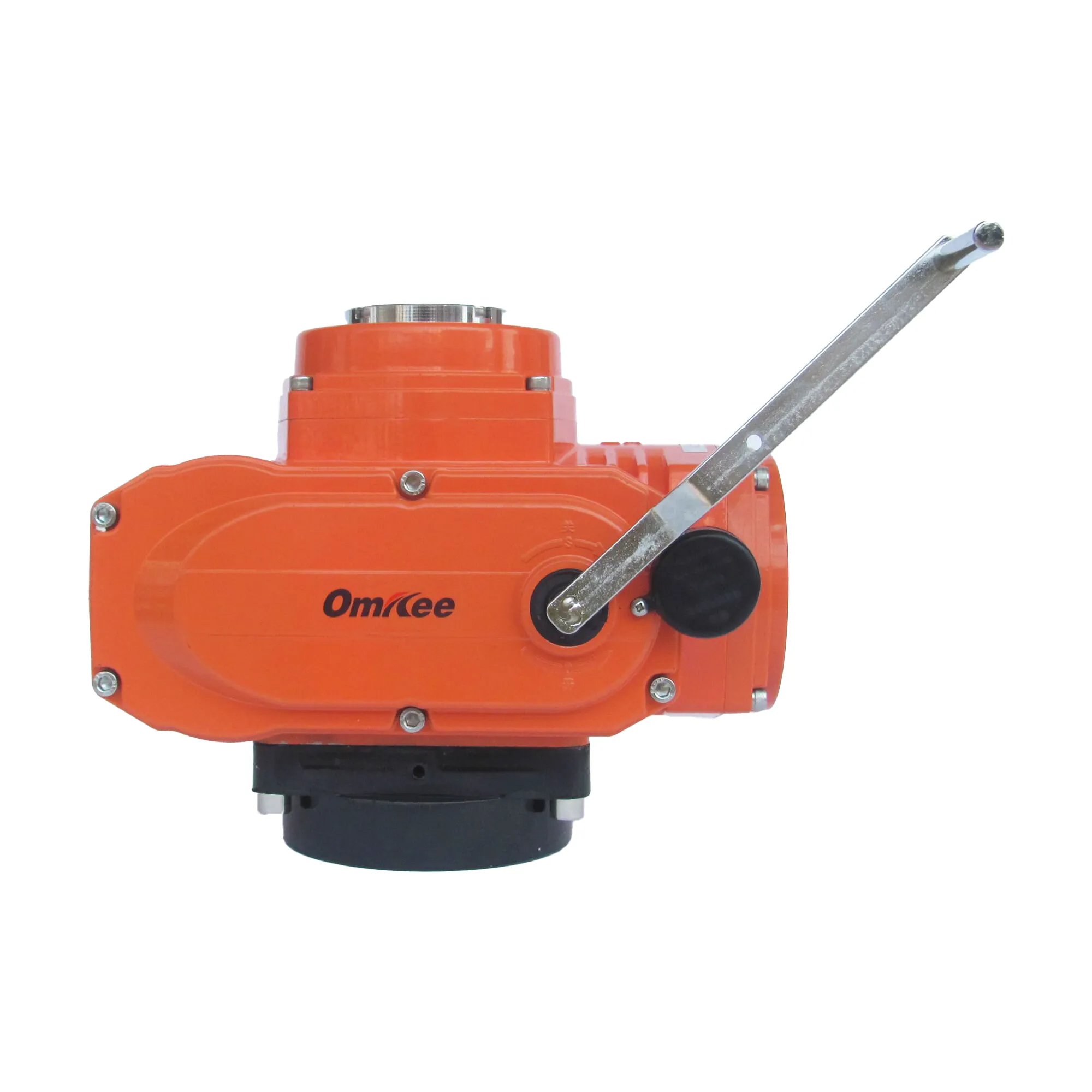

OMK-Ex10A Explosion-proof Electric Actuator

The OMK-Ex10A Explosion-proof Electric Actuator is engineered with a compact structure, exceptional ease of installation, premium build quality, and outstanding operational reliability.

Performance Parameters Type Power	OMK-EX10
	DC24V	AC110V	AC24V	AC380V	AC220V
Motor Power	25W	25W	25W	15W	25W
Rated Current	2.03A	0.57A	2.12A	0.10A	0.32A
Optional Time / Torque	30S/100NM
Turning Angle	15S/50NM 20S/70NM			60S/100NM
Total Weight (kg)	0~360 Adjustable
Cold Insulation Resistance(M Ω)	5.5
Voltage-Withstand Class	AC110V/220V/380V : 100MΩ/500VDC
Protection Class	AC110V/220V : 1500VAC one minute, AC380V : 1800VAC one minute
Explosive proof grade	IP67
Installation Angle	ExdIIBT4 Gb
Electric Interface	One G1/2 Water-proof Cable Connector (For types with 4-20mA DC, etc. control signals , add one more)
Ambient Temperature (℃)	-30℃ ~ +60℃
Type of Control Circuit	One G1/2 Water-proof Cable Connector（For types with 4-20mA DC, etc. control signals , add one more）
Options of other function	Type A:Ordinal switch type; Type B:Passive signal feedback type; Type C:Resistance signal feedback type:Type D: Resistance signal and passivesignal feedback type: Type E:Adjusting type: Type F: With positiontransmitter; Type G: DC current control type: Type H: AC 380V power control type
Options of other function

1. Brand & Manufacturer

Brand:OMKEE (Wuhan Omkee)

2. Product Features

TheOMK-Ex10A Explosion-proof Electric Actuatoris engineered with a compact structure,exceptional ease of installation,premium build quality,and outstanding operational reliability.

3. Application Fields

This product is widely utilized in sectors requiring precise fluid control and automation,including:

Petroleum & Petrochemical
Chemical Processing
Paper & Pulp Manufacturing
Power Generation (Hydroelectric & Thermal)
Metallurgy,Iron & Steel
Pharmaceuticals & Food Processing
Water & Wastewater Treatment
Marine & Shipbuilding
Agricultural Drainage & Irrigation
Building Automation Systems (BAS)

4. Component & Material Highlights

Component	Technical Specifications & Material Highlights
Enclosure / Housing	Made of ADC12 die-cast aluminum alloy, treated with aging and shot-blasting, and finished with a high-durability powder coating. Coating thickness is >0.2 mm, with a thermal resistance exceeding 150°C.

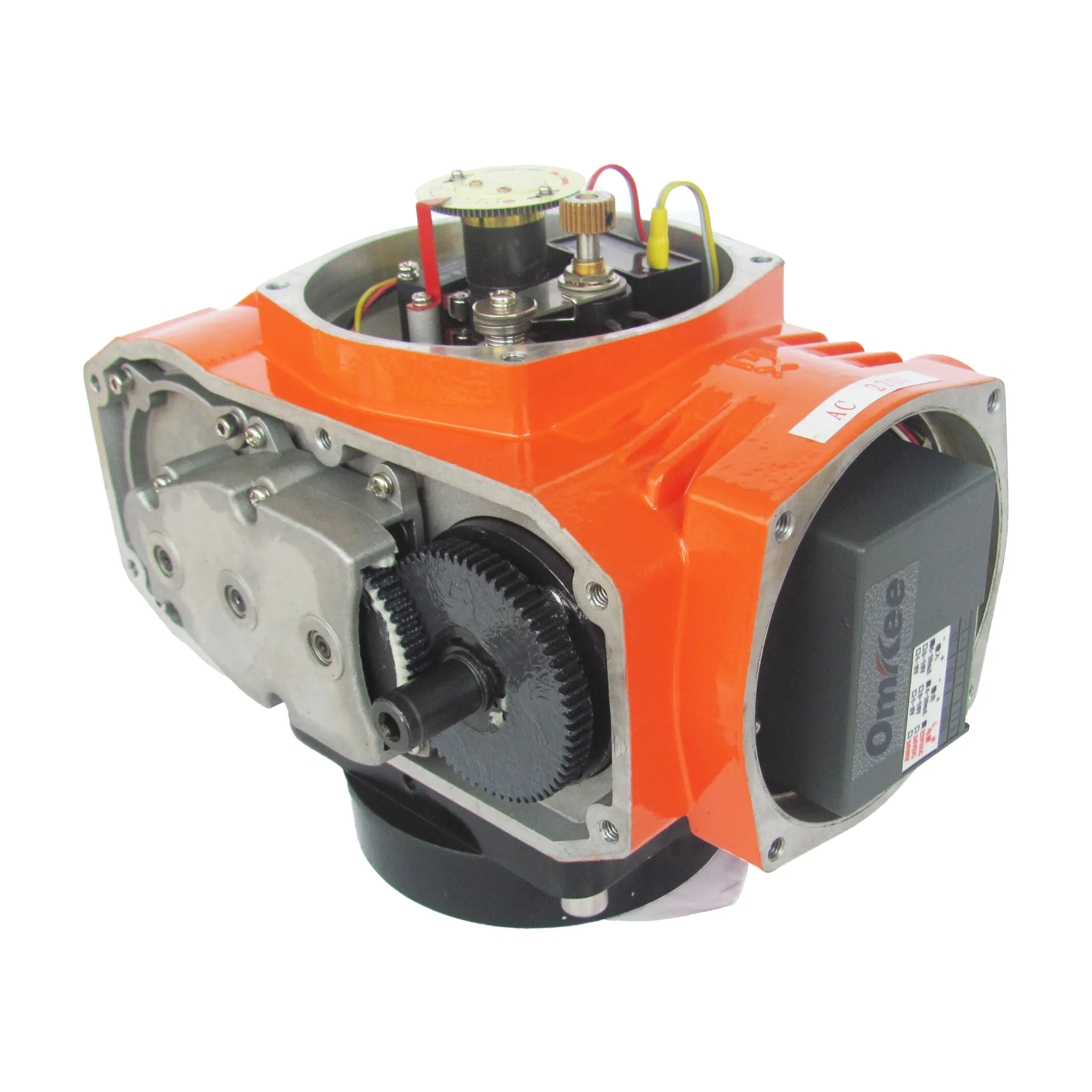

Worm & Gear System	The bronze worm gear is forged from custom-proportioned aluminum bronze alloy blanks and precision-machined. The output shaft and worm are crafted from 40Cr steel, heat-treated and finished with a black oxide anti-rust coating. The output shaft and worm gear utilize a highly reliable spline connection, eliminating the shearing and twisting risks commonly found in single-piece shaft structures.
Reduction Gears	All reduction gears are precision-machined from premium quenched and tempered steel, offering high precision, high strength, low noise, excellent fatigue resistance, and superior wear resistance. Both ends of the gear reduction unit are stabilized with high-precision deep groove ball bearings to minimize noise and absorb heavy load impacts. The reduction gearbox is die-cast from ADC12 aluminum alloy for enhanced structural rigidity and smoother transmission.
Electric Motor	Tailored for complex industrial environments and high-precision modulation. The motors are designed with a safety margin of 1.3 to 1.5 times the rated torque. Critical parameters such as temperature rise, rotational inertia, and dielectric strength have undergone rigorous optimization and repetitive stress testing to ensure reliable frequent starts under full or overloaded conditions.
Bearings	All bearings feature minimal clearance, low noise, and high precision, strictly adhering to the low-noise EMQ (ZV2) standard with a precision rating of Class P6. Low noise and vibration levels are achieved through strict control of raceway/ball surface roughness, ring/ball roundness, and optimized cage design.

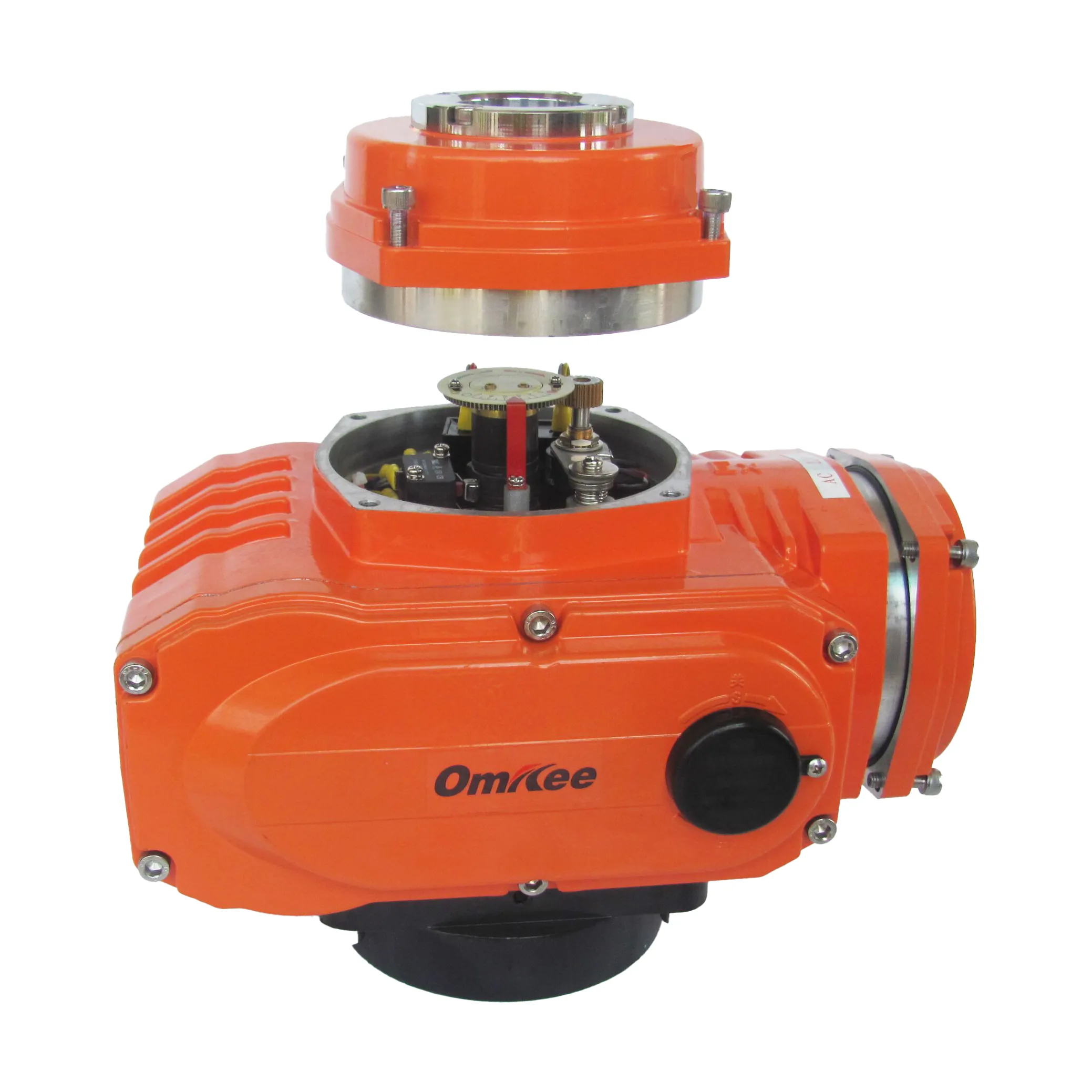

Stroke Control	Utilizes a proprietary, uniquely designed stroke control device. The limit switches are adjusted via a top-mounted "Adjustment Shaft", making field commissioning simpler and significantly more precise.
Oil & Mechanical Seals	Equipped with imported premium double-lip skeleton TC oil seals and O-rings from the German brand "AUBOR" (Oubosi).
Lubrication	Prefilled with imported high-performance "Mobil" brand grease.

5. Design, Manufacturing, and Quality Control Work Instructions

Engineering & Design Simulation:Components are designed by senior engineers with over 10 years of field experience,integrating theoretical mechanics with real-world troubleshooting data.Detailed 2D and 3D component/assembly drawings are simulated and validated usingUG (Unigraphics NX) softwarebefore die-cast mold fabrication.
Precision Machining:CNC machining is conducted using imported high-precision4-axis machining centersequipped with high-efficiency pneumatic fixtures.Post-machining dimensions are strictly verified using aCoordinate Measuring Machine (CMM)to guarantee compliance with specified tolerances.
Assembly & Factory Acceptance Testing (FAT):Assembly strictly follows theProduct Assembly Work Instructions.Every unit must pass4 stage-gates and a final comprehensive inspectionbefore factory release:
1. Torque Test:Every single unit undergoes a strict torque test to verify that it maintains a safety margin of1.3 times the rated torqueunder both rated and negative voltage conditions.
2. Dielectric Strength / Hi-Pot Test:Every unit is subjected to a high-voltage insulation test.A1500V ACvoltage is applied to any of the three motor leads; the wire insulation must not break down within1 minuteto pass.
3. Load Cycle Test:Random batch sampling is conducted for continuous load testing.Sample units must operate normally under full load for48 continuous hoursto qualify the batch.
4. Airtightness & Waterproof Test:Every unit undergoes a submerged sealing test.The internal cavity is pressurized to0.2 MPavia the waterproof cable gland; it passes if zero air bubbles escape within1 minute.
5. Final Inspection:Dedicated QA/QC inspectors perform a comprehensive visual and functional check on every finished unit prior to packaging and dispatch.

6. Technical Performance Parameters

Product Name:OMK-Ex10A Explosion-proof Electric Actuator
Actuator Model:OMK-Ex10A
Control Voltage Options: DC24V / AC110V / AC220V / AC380V
90° Quarter-Turn Travel Time & Output Torque: 30 Seconds / 100 Nm
Dielectric Strength:
- For AC110V/AC220V units: AC1500V / 1 minute
