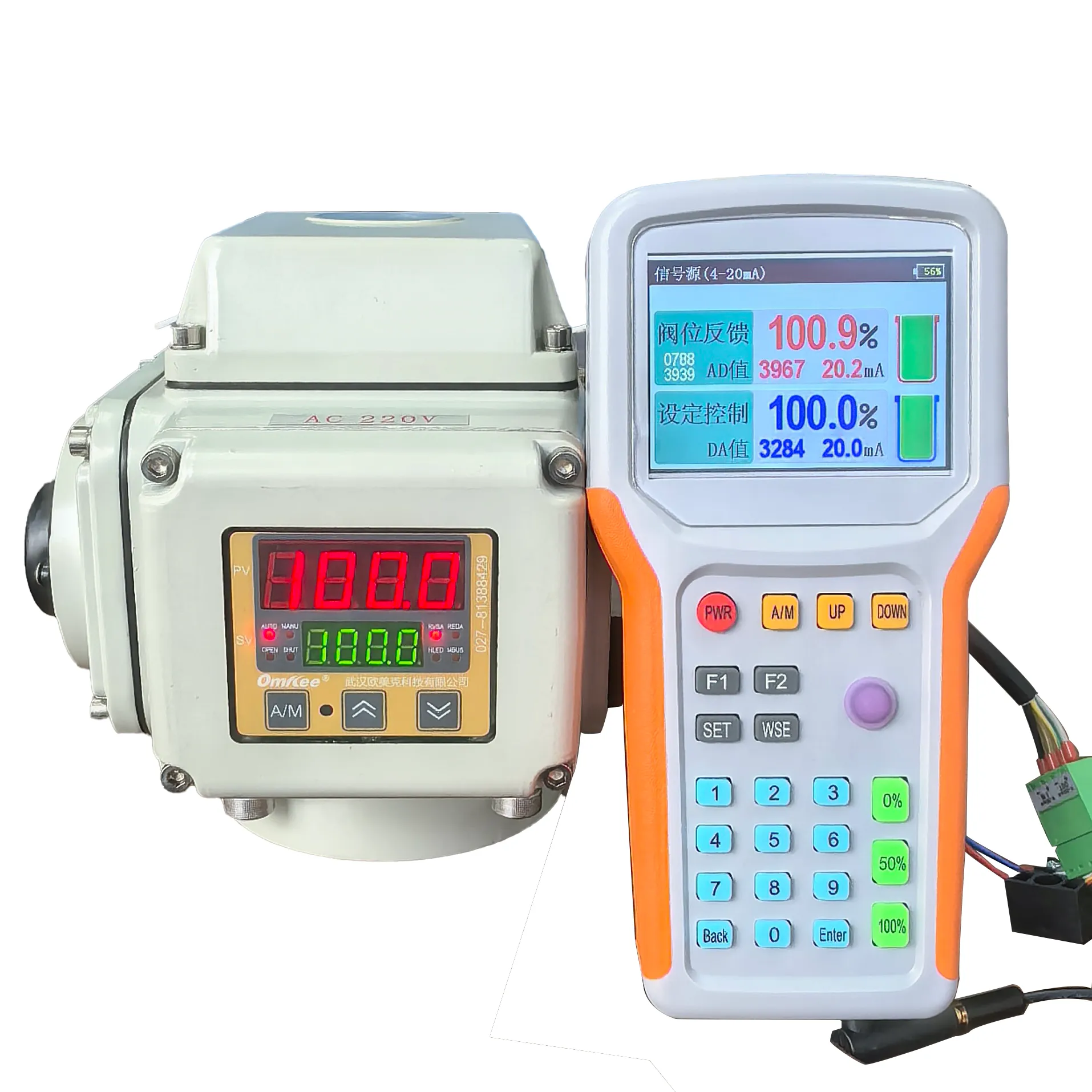

OMK-40E-ZT13A Smart Integral Modulating Electric Actuator

The OMK-40E-ZT13A is a next-generation smart integral modulating electric actuator designed for precise automation in demanding industrial environments. Equipped with an advanced intelligent control module and a non-intrusive design, it offers seamless integration, real-time diagnostics, and exceptional modulation accuracy for rotary and linear valves.

Here is the revised version with all the ## heading markers removed, while keeping the clean, professional, and scannable formatting intact.

1. TDK Optimization (SEO Meta Tags)

Meta Title: OMK-40E-ZT13A Smart Integral Modulating Electric Actuator | [Your Brand Name]
Meta Description: High-precision OMK-40E-ZT13A intelligent integral modulating electric actuator. Features 4-20mA control, real-time LCD display, and IP67/IP68 protection for precise industrial valve control.
Meta Keywords: OMK-40E-ZT13A, smart electric actuator, integral modulating actuator, intelligent valve actuator, 4-20mA modulating actuator, industrial valve control.

2. Product Detail Page (English Version)

OMK-40E-ZT13A Smart Integral Modulating Electric Actuator

Name: OMK-40E-ZT13A Smart Integral Modulating Electric Actuator
SKU: FyixtkZc1_wyG8f3jXZ_bg

Intelligent Control | High-Precision Modulation | Industrial-Grade Reliability

The OMK-40E-ZT13A is a next-generation smart integral modulating electric actuator designed for precise automation in demanding industrial environments. Equipped with an advanced intelligent control module and a non-intrusive design, it offers seamless integration, real-time diagnostics, and exceptional modulation accuracy for rotary and linear valves.

Key Features

Smart Integral Design: Built-in intelligent control unit eliminates the need for external positioners, reducing wiring complexity and minimizing failure points.
High-Precision Modulation: Supports standard 4-20mA or 0-10V input/output signals for precise proportional control with minimal dead band.
Non-Intrusive Calibration: Easy commissioning via local magnetic knobs or an infrared remote control—no need to open the housing cover in volatile environments.
HD LCD Visual Interface: High-definition display provides real-time status updates, valve position percentages, operating modes, and fault diagnostics.
Robust Protection: Standard IP67 (optional IP68) waterproof and dustproof enclosure ensures stable operation under harsh outdoor and industrial conditions.

Technical Specifications

Parameter	Specification Details
Model	OMK-40E-ZT13A
Control Type	Intelligent Modulating Type (Proportional Control)
Input / Output Signal	4-20mA DC / 0-10V DC
Power Supply	220V AC / 380V AC / 24V DC (Optional)
Output Torque / Thrust	Rated for heavy-duty industrial valves (Match configured application)
Enclosure Protection	IP67 (IP68 Optional)
Explosion-Proof Class	Ex d IIC T4 Gb (Optional configuration available)
Ambient Temperature	-20°C to +70°C
Basic Error	$\le \pm1.0\%$
Dead Band	0.5% – 3% (Adjustable)

Internal Structure & Working Principle

The actuator utilizes a high-efficiency synchronous motor coupled with a precision worm gear system to deliver stable torque. The integrated microprocessing unit continuously compares the input control signal with the actual position feedback from the contactless absolute encoder, automatically adjusting the motor's direction and speed to maintain flawless valve positioning.

Smart Protection Mechanisms

Over-Torque Protection: Automatically cuts off power if the valve jams, preventing mechanical and motor damage.
Phase Failure & Reversal Protection: Safeguards 3-phase power setups against incorrect wiring or phases dropping out.
Thermal Overload Protection: Built-in temperature sensors automatically pause operation if the motor overheats, resuming once cooled.
Signal-Loss Action: Fully programmable to fail safe (Fail Open, Fail Close, or Stay in Put) if the input control signal is lost.

Target Applications

The OMK-40E-ZT13A is widely utilized across automated process industries, including:

Water & Wastewater Treatment: Flow control, filtration systems, and chemical dosing.
HVAC Systems: Large-scale building automation and cooling towers.
Power Generation: Damper regulation and steam/water valve modulation.
Chemical & Petrochemical: Safe, precise fluid control in pipeline networks.

Ordering Information & Package Checklist

When placing an order or requesting a quote, please specify:

Operating Voltage (e.g., Single-phase 220V or Three-phase 380V)
Valve Type & Connection Interface (Flange, ISO5211 base details)
Explosion-proof requirements, if applicable.

What's in the Box:

1 × OMK-40E-ZT13A Electric Actuator
1 × Infrared Remote Controller (For non-intrusive setup)
1 × User Manual & Quality Certificate
