OMK-10C Electric Actuator (Potentiometer Feedback Type)

Key Component Features & Material Engineering

1. Rugged Enclosure (ADC12 Die-Cast Aluminum)

The housing is constructed from heavy-duty ADC12 die-cast aluminum, treated with aging and shot-blasting processes. It features an advanced thermo-sprayed powder coating with a thickness greater than 0.2 mm. This durable shell easily withstands continuous temperatures above 150°C without degradation.

2. High-Torque Motor with Heavy Safety Reserve

To handle erratic pipeline loads, OMKEE engines the OMK-10C motor with a 1.3x to 1.5x torque safety reserve. Crucial parameters—such as motor temperature rise curves, rotational inertia, and insulation strength—are strictly tested. This design ensures the actuator can handle frequent start-stop cycles, even under full or overloaded conditions.

3. Spline Joint and Forged Worm Gear Drive

The inner copper worm wheel is forged from a high-performance aluminum bronze alloy, paired with a 40Cr alloy steel worm shaft that has undergone thermal tempering and black-oxide anti-rust treatment.

Instead of fragile one-piece structures that snap under heavy stress, the OMK-10C relies on a high-strength spline connection to lock the output shaft and the worm gear together. This setup spreads mechanical stress evenly across the joint.

4. Precision Gearbox & Low-Noise P6 Bearings

• Premium Reduction Gears: All reduction gears are precision-cut from high-grade quenched and tempered steel, yielding high fatigue resistance, minimal wear, and low operating noise.

• P6-Class Bearings: Both ends of the gear units are supported by P6-grade deep-groove ball bearings built to the low-noise EMQ (ZV2) standard. This setup controls internal vibration and resists sudden load shocks.

• Lubrication & Seals: Features imported premium Mobil grease and authentic twin-lipped skeleton TC oil seals from the German brand Oubaisi to prevent any grease leakage.

5. Intuitive External Stroke Limits

The OMK-10C uses a proprietary stroke adjustment mechanism. Field technicians can adjust the open and close limits directly using the external top adjusting shaft, making commissioning fast, safe, and precise.

Overall Dimensions and Performance Parameters

	Parameter\Performance\Type (Power)	DC24V	AC110V	AC24V	AC380V	AC220V
	Motor Power	25W	25W	25W	15W	25W
	Rated Current	2.03A	0.57A	2.12A	0.10A	0.32A
	Standard Time/Torque	30S/100Nm
	Optional Time / Torque	15S/50Nm 6S/40Nm			60S/100Nm
	Turning Angle	0~360° Adjustable
	Total Weight (kg)	3.5
	Cold Insulation Resistance (MΩ)	AC110V/220V/380V: 100 MΩ/500VDC
	Voltage-Withstand Class	AC110V/220V: 1500VAC one minute, AC380V: 1800VAC one minute
	Protection Class	Ip67
	Installation Angle	360° at any angle
	Electric Interface	One G1/2 Water-proof Cable Connector (For types with 4-20mA DC, etc. control signals, add one more)
	Ambient Temperature (℃)	-30℃~+60℃

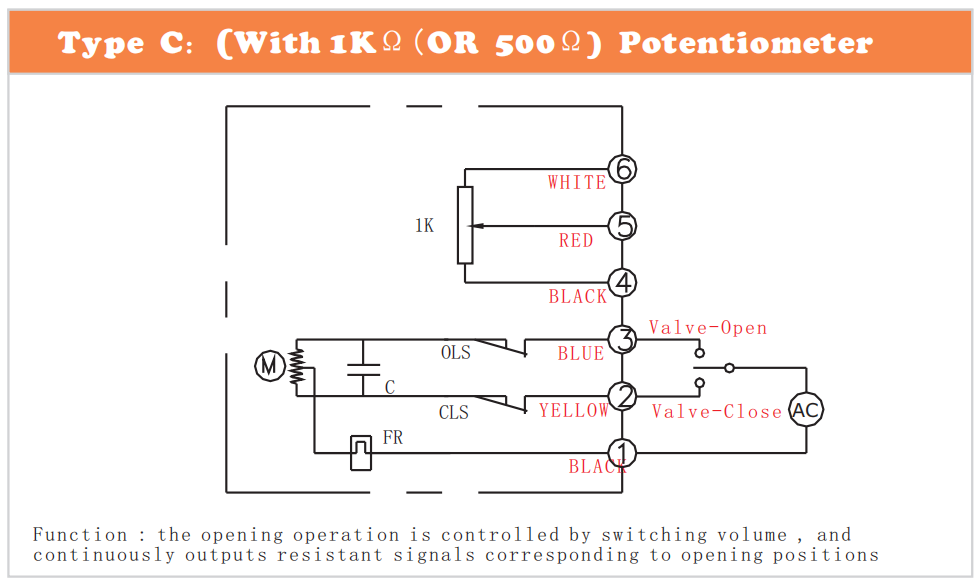

	Type of Control Circuit	Type A:Ordinal switch type; Type B:Passive signal feedback type; Type C: Resistance signal feedback type; Type D: Resistance signal and passive signal feedback type; Type E: Adjusting type; Type F: With position transmitter; Type G: DC current control type; Type H: AC 380V power control type
	Options of other function	★Stainless steel support, coupling ★Direct installation board, coupling (ISO5211 Standard) ★Over torque protector ★Heater for eliminating moisture

Global Compliance and Applications

The OMK-10C complies fully with the JB/T8219-1999 manufacturing standard for industrial electric actuators. It is officially certified under test report No. C16040-WT by the Shanghai Institute of Process Automation Instrumentation. Furthermore, OMKEE manufacturing plants maintain verified compliance with ISO 9001:2008 and the European Union CE Certification, making this product ready for direct export into world markets.

Target Applications:

• Energy Systems: Thermal power plants (steam turbine speed control loops) and hydro-generation stations.

• Heavy Processing: Petroleum refineries, aggressive chemical processing, steel manufacturing, metallurgy, and paper mills.

• Infrastructure: Municipal water treatment, automated sewage networks, marine shipbuilding, and large-scale power irrigation networks.

• Light Industrial: Food and beverage processing, pharmaceutical cleanrooms, and automated HVAC/Building Automation Systems (BAS).
