Key Component Features & Material Engineering

1. Rugged ADC12 Aluminum Housing

The actuator shell is made from heavy-duty ADC12 die-cast aluminum. The raw metal goes through aging and shot-blasting treatments to maximize structural strength. Furthermore, it is coated with an advanced thermo-sprayed powder finish that is thicker than 0.2 mm. This durable layer can withstand constant temperatures above 150°C without cracking or peeling.

2. High-Torque Motor with Safety Reserve

Industrial pipelines often face unexpected friction spikes due to fluid thickness or high pressure. To solve this, OMKEE engineers the OMK-10B motor with a 1.3x to 1.5x torque safety reserve. Important factors like temperature rise, rotational inertia, and insulation strength are strictly tested. This ensures the actuator can start frequently and run smoothly under full or even overloaded conditions.

3. Advanced Spline Drive and Gear System

The copper worm wheel is forged from a high-grade aluminum bronze alloy, matched with a 40Cr alloy steel worm shaft that has undergone precise thermal treatment and black-oxide anti-rust plating.

Unlike weak one-piece structures that snap easily at the neck, the OMK-10B uses a heavy-duty spline connection to link the output shaft and the worm gear. This setup distributes mechanical stress evenly.

Overall Dimensions and Performance Parameters

	Parameter\Performance\Type (Power)	DC24V	AC110V	AC24V	AC380V	AC220V
	Motor Power	25W	25W	25W	15W	25W
	Rated Current	2.03A	0.57A	2.12A	0.10A	0.32A
	Standard Time/Torque	30S/100Nm
	Optional Time / Torque	15S/50Nm 6S/40Nm			60S/100Nm
	Turning Angle	0~360° Adjustable
	Total Weight (kg)	3.5
	Cold Insulation Resistance (MΩ)	AC110V/220V/380V: 100 MΩ/500VDC
	Voltage-Withstand Class	AC110V/220V: 1500VAC one minute, AC380V: 1800VAC one minute
	Protection Class	Ip67
	Installation Angle	360° at any angle
	Electric Interface	One G1/2 Water-proof Cable Connector (For types with 4-20mA DC, etc. control signals, add one more)
	Ambient Temperature (℃)	-30℃~+60℃

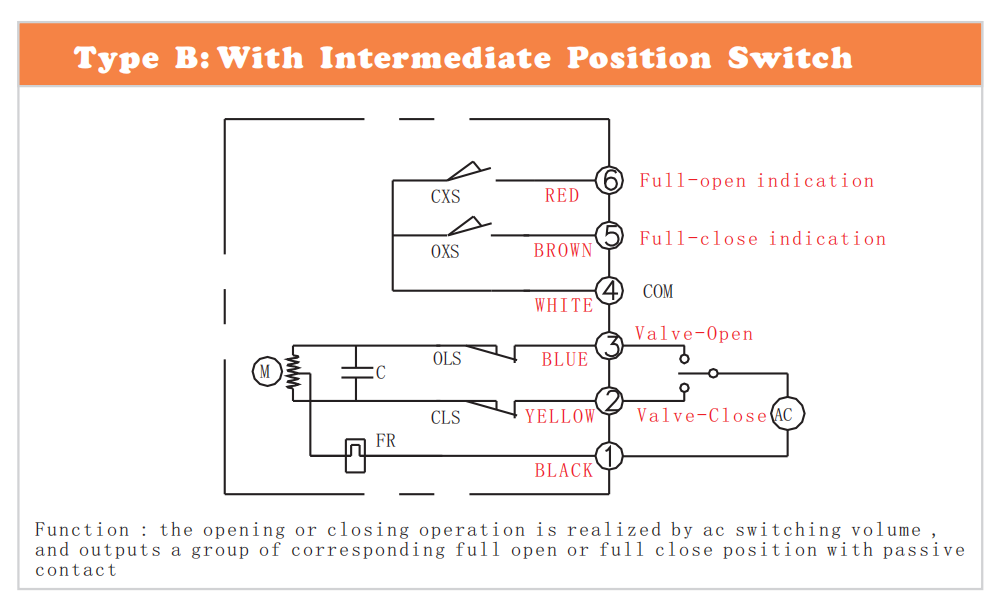

	Type of Control Circuit	Type A:Ordinal switch type; Type B:Passive signal feedback type; Type C: Resistance signal feedback type; Type D: Resistance signal and passive signal feedback type; Type E: Adjusting type; Type F: With position transmitter; Type G: DC current control type; Type H: AC 380V power control type
	Options of other function	★Stainless steel support, coupling ★Direct installation board, coupling (ISO5211 Standard) ★Over torque protector ★Heater for eliminating moisture

Global Compliance and Applications

The OMK-10B complies fully with the JB/T8219-1999 manufacturing standard for industrial electric actuators. It is officially certified under test report No. C16040-WT by the Shanghai Institute of Process Automation Instrumentation. Furthermore, OMKEE manufacturing plants maintain verified compliance with ISO 9001:2008 and the European Union CE Certification, making this product ready for direct export into world markets.

Target Applications:

• Energy Systems: Thermal power plants (steam turbine speed control loops) and hydro-generation stations.

• Heavy Processing: Petroleum refineries, aggressive chemical processing, steel manufacturing, metallurgy, and paper mills.

• Infrastructure: Municipal water treatment, automated sewage networks, marine shipbuilding, and large-scale power irrigation networks.

• Light Industrial: Food and beverage processing, pharmaceutical cleanrooms, and automated HVAC/Building Automation Systems (BAS).
