Technical Advantages & Materials
1. Intelligent Servo Controller Features
-
Real-time Display: Built-in digital display shows actual stroke percentage and fault codes for easy troubleshooting.
-
High-Precision Control: Features an imported high-speed CPU and hybrid circuit design. Electronic braking eliminates motor inertia, ensuring Zero Oscillation and high positioning accuracy.
-
High Frequency Operation: SCR (Silicon Controlled Rectifier) output allows for high-frequency switching (up to 1200 times/hour).
-
Robust Protection: The circuit board is fully resin-potted for vibration resistance, dust-proofing, and moisture isolation. Optoelectronic isolation ensures strong anti-interference against PLC/DCS systems.
2. Premium Hardware Components
-
Feedback System: Uses a Japanese Sakae conductive plastic potentiometer. Its unique spring-loaded mechanism eliminates gear backlash, providing continuous and stable real-time sampling.
-
Mechanical Strength: ADC12 aluminum housing with a 150°C heat-resistant powder coating. Output shafts made of heat-treated 40Cr steel with spline connections to prevent torsional failure.
-
Superior Sealing:IP68 Protection Class (Report No: C16040-WT) using German Oberst TC oil seals.
-
Lubrication: Lifetime Mobil synthetic grease ensures smooth transmission and wear resistance.
Technical Parameters Table
| Parameter | Specification |
| Model | OMK-05E (Intelligent Modulating Type) |
| Input/Output Signal | 4-20mA DC / 1-5V DC |
| Positioning Accuracy | ≥ 0.5% |
| Rated Torque | 50 Nm |
| Operating Time (90°) | 20 Seconds (Standard) / 60 Seconds (Optional) |
| Control Voltage | DC24V, AC110V, AC24V, AC220V, AC380V |
| Protection Grade | IP68 |
| Operating Frequency | Up to 1200 starts per hour |
| Electrical Interface | 2 x G1/2 Waterproof cable connectors |

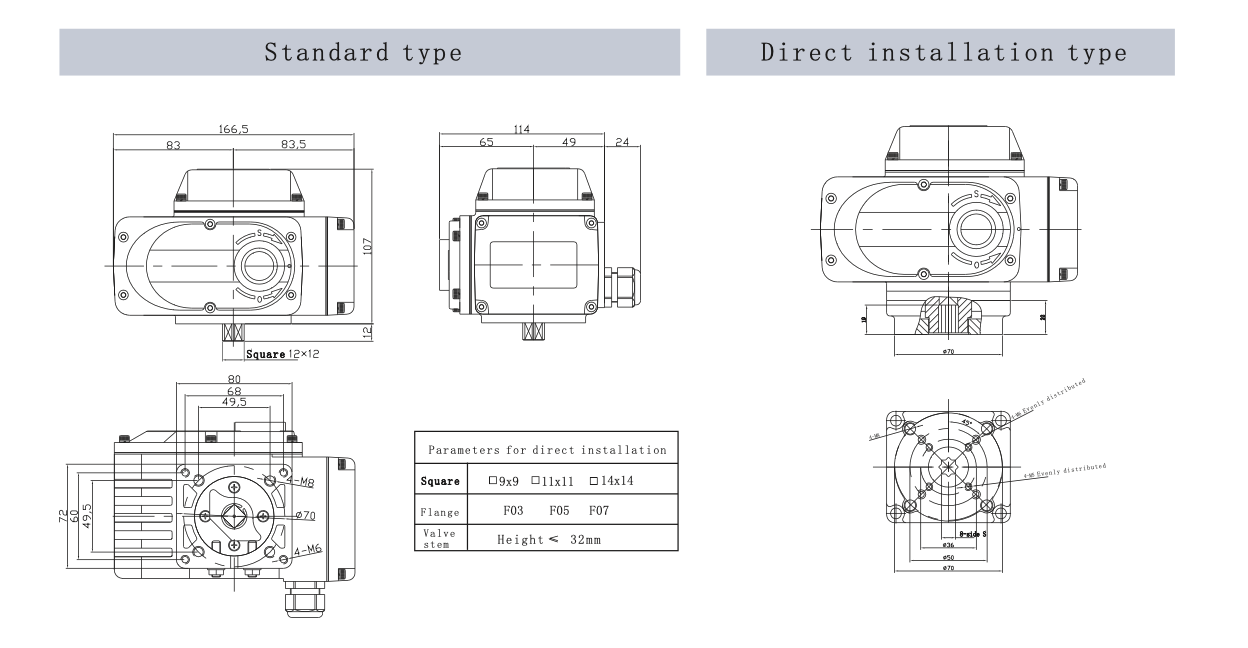

Overall Dimensions and Performance Parameters
 |

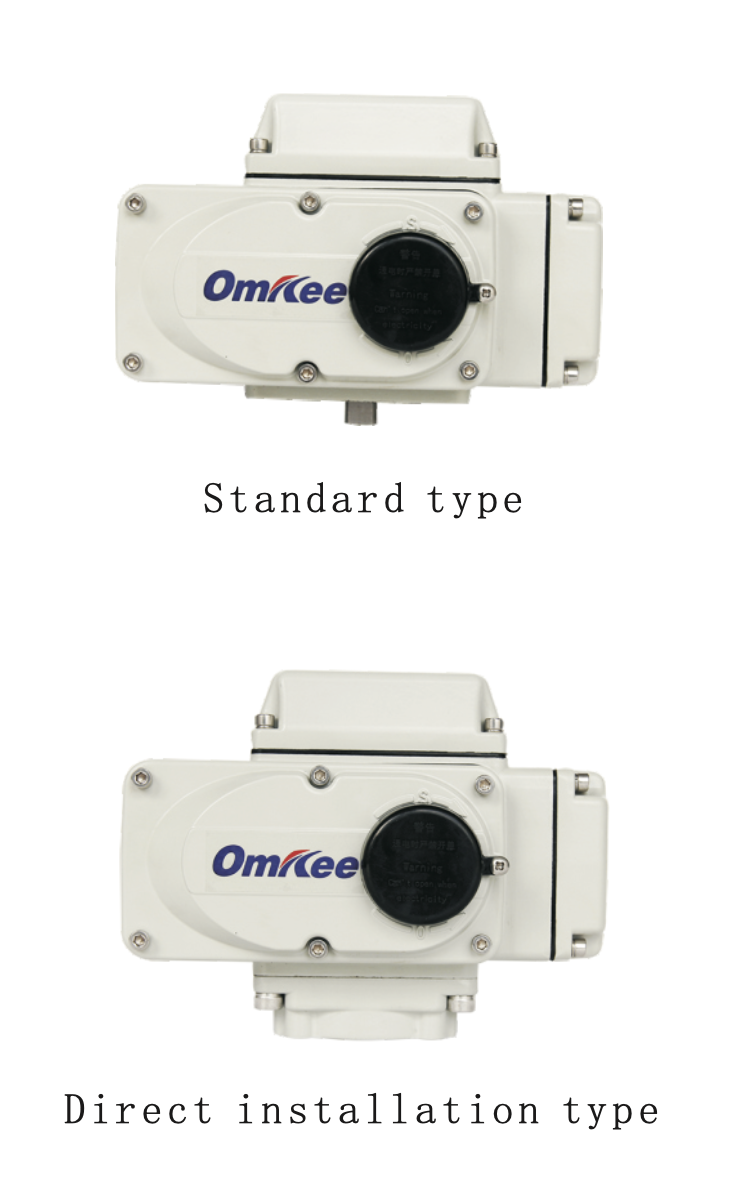

Parameter\Performance\Type (Power) | DC24V | AC110V | AC24V | AC380V | AC220V |
| Motor Power | 13W | 10W | 10W | 6W | 10W | |
| Rated Current | 1.28A | 0.24A | 1.5A | 0.07A | 0.16A | |
| Standard Time/Torque | 20S/50Nm | |||||
| Optional Time / Torque | 4S/20Nm 10S/30Nm | 60S/50Nm | ||||
| Turning Angle | 0~360° Adjustable | |||||
| Total Weight (kg) | 2.5 | |||||
| Cold Insulation Resistance (MΩ) | AC110V/220V/380V: 100 MΩ/500VDC | |||||
| Voltage-Withstand Class | AC110V/220V: 1500VAC one minute, AC380V: 1800VAC one minute | |||||
| Protection Class | Ip67 | |||||
| Installation Angle | 360° at any angle | |||||
| Electric Interface | One G1/2 Water-proof Cable Connector (For types with 4-20mA DC, etc. control signals, add one more) | |||||
| Ambient Temperature (℃) | -30℃~+60℃ | |||||
| Type of Control Circuit | Type A:Ordinal switch type; Type B:Passive signal feedback type; Type C: Resistance signal feedback type; Type D: Resistance signal and passive signal feedback type; Type E: Adjusting type; Type F: With position transmitter; Type G: DC current control type; Type H: AC 380V power control type | |||||
| Options of other function | ★ Stainless steel support, coupling
★Direct installation board, coupling (ISO5211 Standard) ★Over torque protector ★Heater for eliminating moisture |
|||||
Professional Manufacturing & Testing
Developed by engineers with over 10 years of experience using UG 3D modeling and processed on imported 4-axis machining centers, each unit undergoes:
-
Torque Testing: 1.3x safety margin verification.
-
Insulation Testing: 1500V/min high-voltage resistance.
-
Endurance Testing: 48-hour continuous full-load sample testing.
-
Sealing Testing: 0.2Mpa underwater air pressure test.
Application Industries
The OMK-05E is widely deployed in:
-
Power Generation: Precise damper and valve control in Hydro and Thermal plants.
-
Water Treatment: Chemical dosing and flow regulation.
-
Petrochemical: High-accuracy fluid control systems.
-
Building Automation: Intelligent HVAC and ventilation control.
