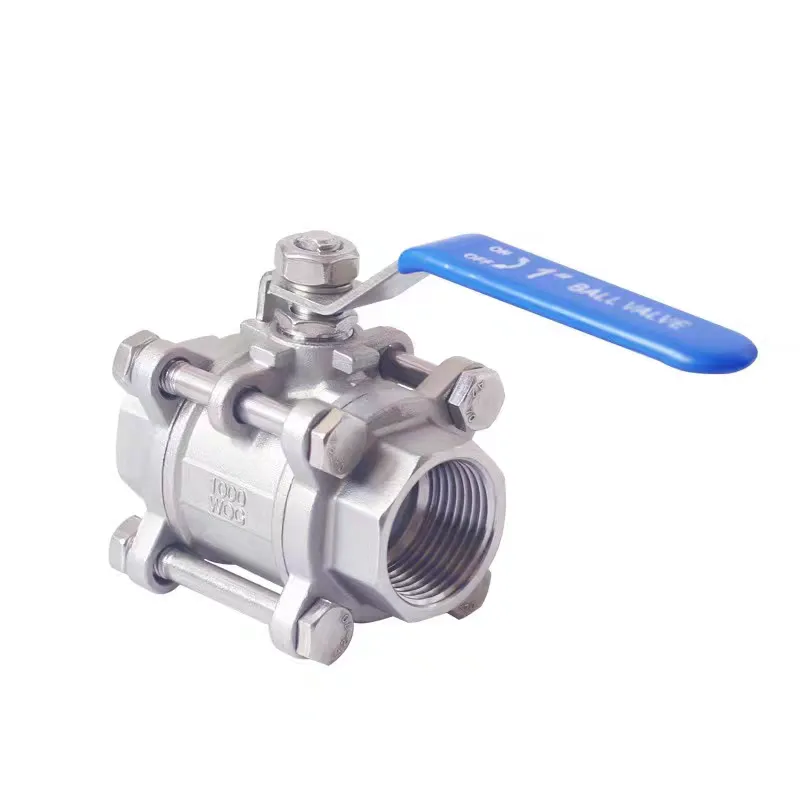

Product Overview

The Manual 3-Piece Threaded Ball Valve is a highly reliable, hand-operated quarter-turn valve designed for easy thread-on installation in commercial and industrial pipelines. Equipped with an ergonomic manual handle, it allows for swift, absolute bubble-tight isolation.

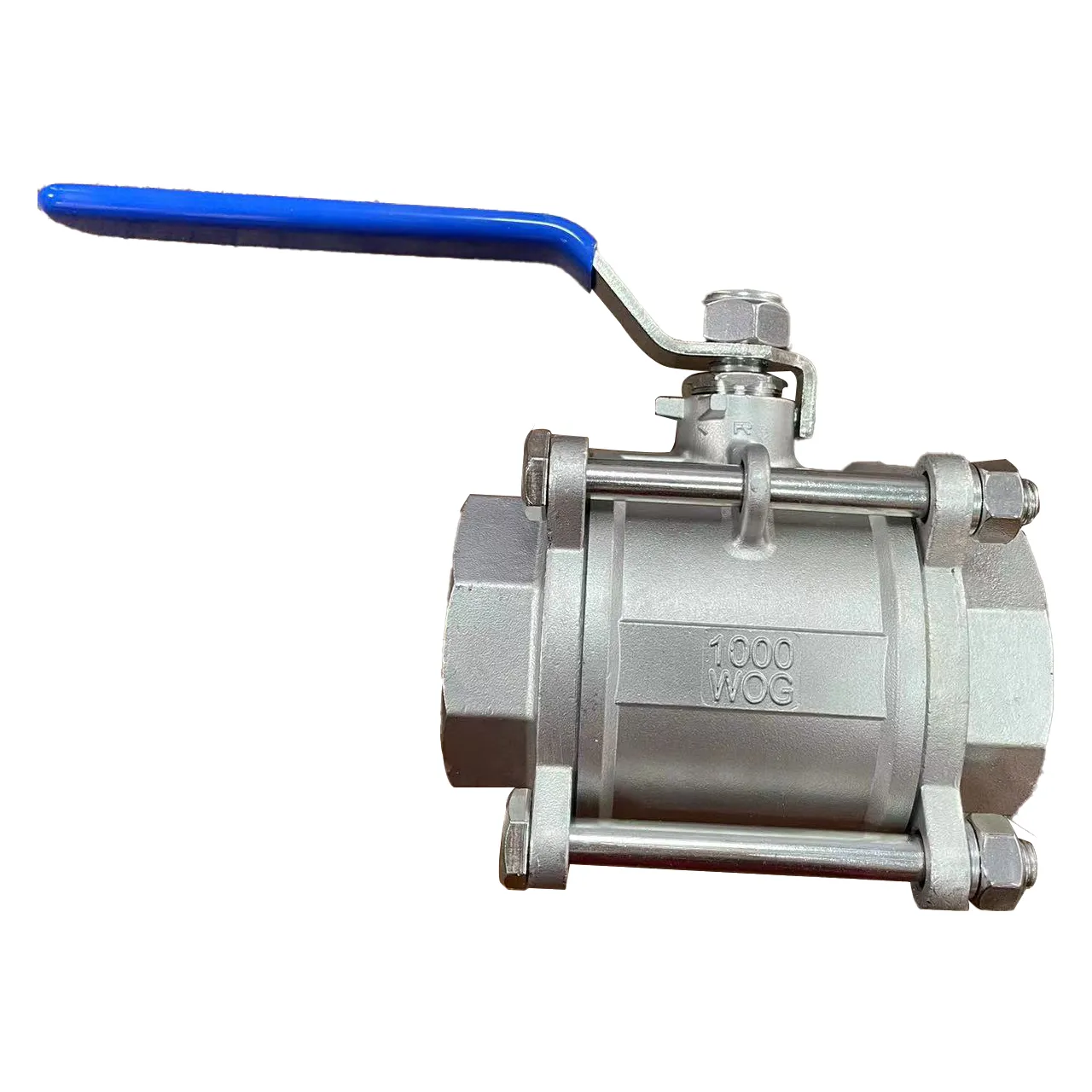

The 3-piece structure is ideal for threaded lines: the female threaded end caps screw directly and tightly onto your pipeline. When maintenance is required, the body bolts can be easily unbolted, allowing the center segment to swing out for immediate cleaning or seal replacement without unscrewing the end connections from the pipe.

Key Mechanical Features

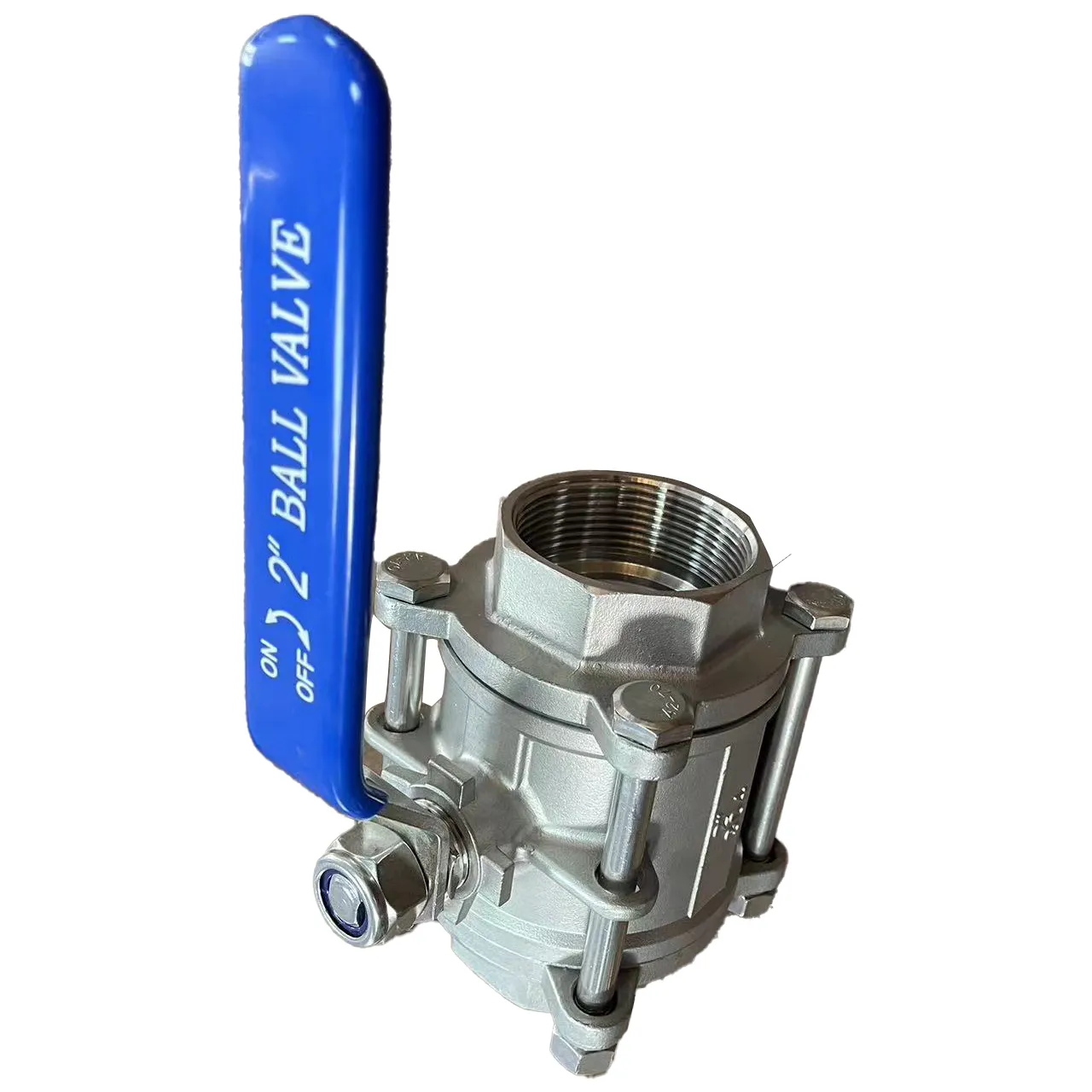

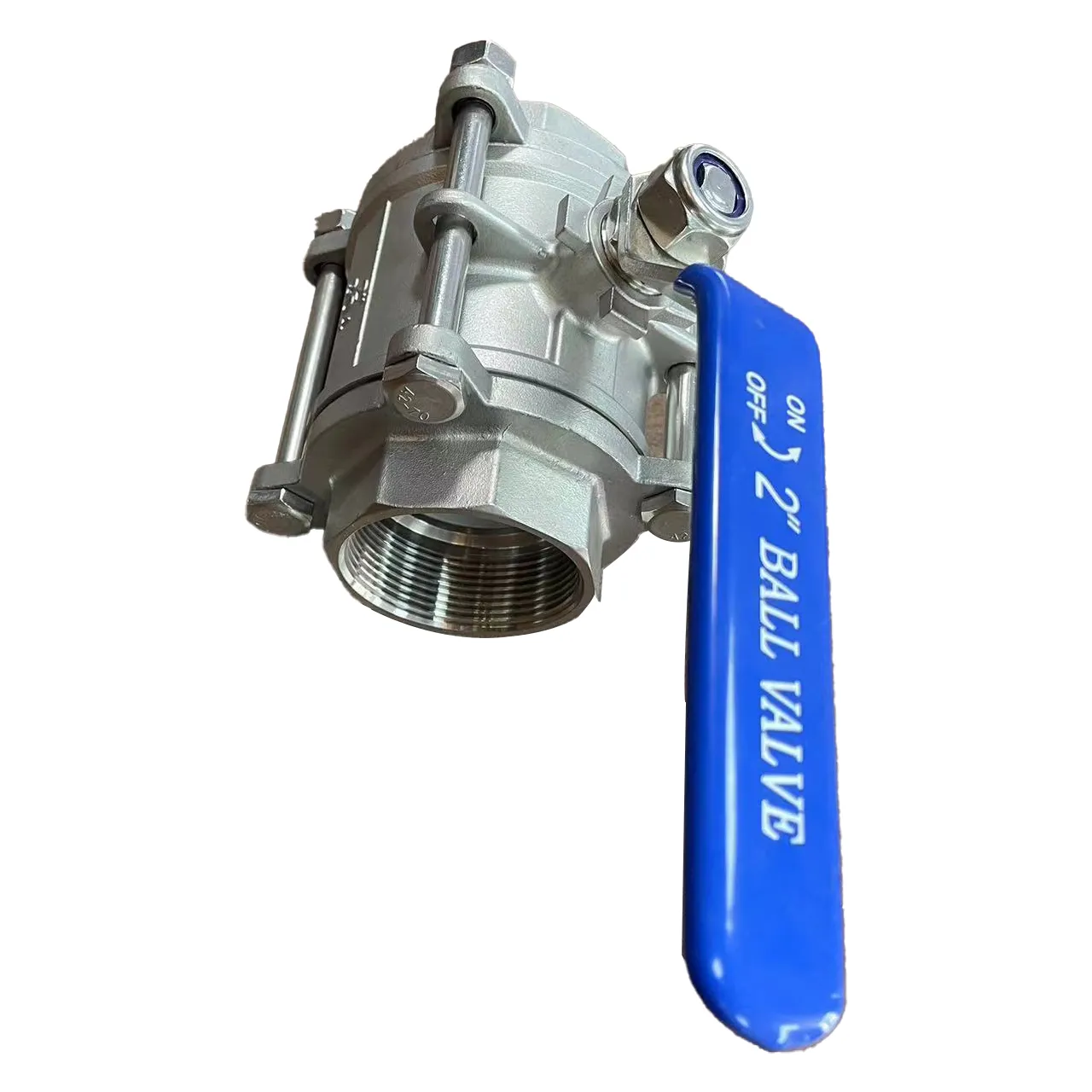

• Lockable Handle Design: Fitted with a robust stainless steel lever handle and a heavy-duty vinyl sleeve. Includes an integrated safety locking latch to padlock the valve in a secure open or closed position (complies with industrial Lock-out/Tag-out safety standards).

• High Flow Efficiency (Full Port): The full bore internal styling provides a smooth, unobstructed fluid pathway that matches the pipeline's exact inner diameter, maximizing $C_v$ ratings.

• Inline Maintenance: Minimizes labor costs and operational downtime through its 3-piece bolt-together design.

Technical Layout & Dimensions

Below is the standard engineering diagram for the Female Threaded (NPT / BSPT / BSPP) configuration.

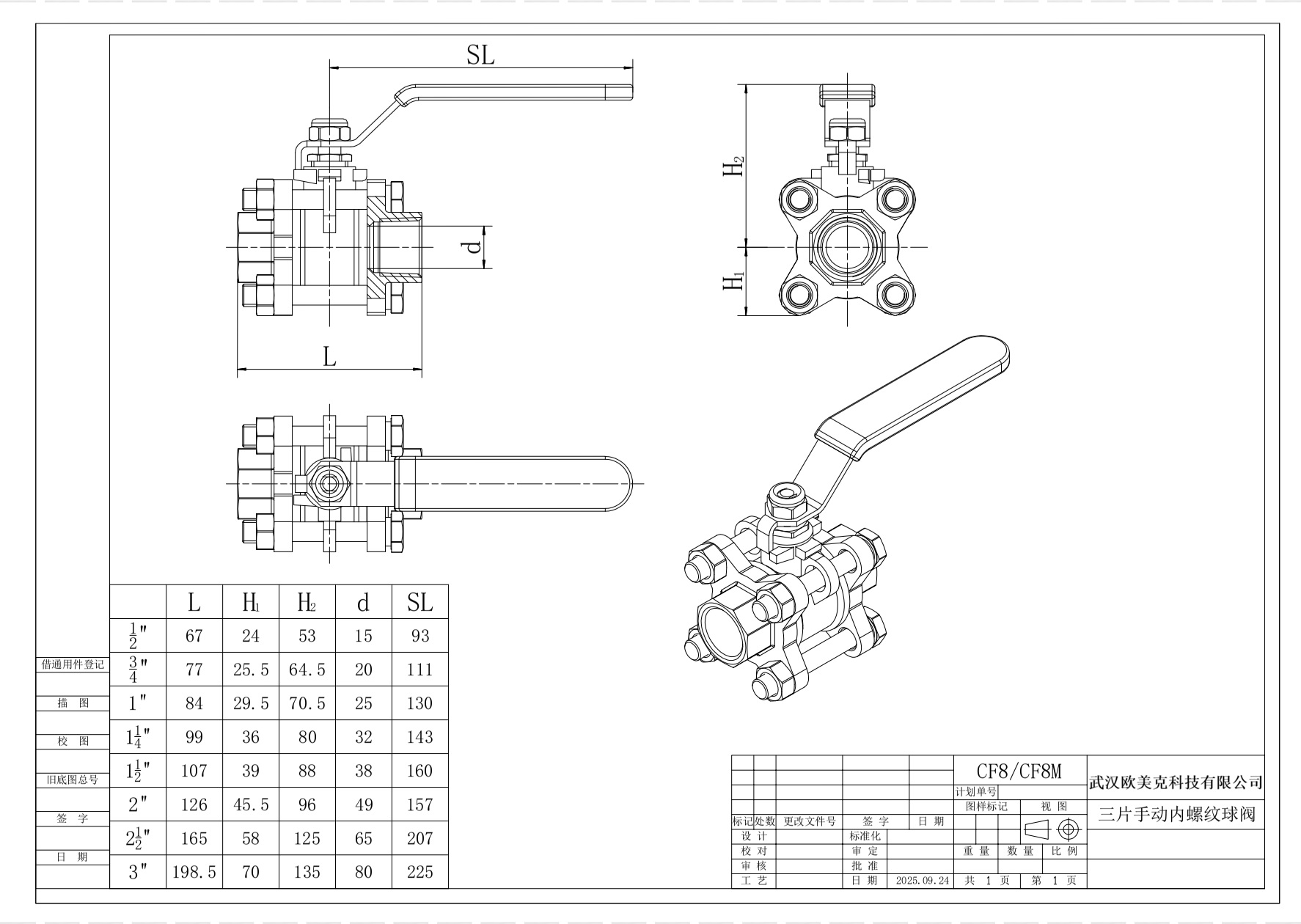

[Technical Drawing Placeholder]

Drawing View Guide:

• L: Face-to-Face Total Length

• H: Total Height (From pipe center line to top of handle)

• W: Handle Lever Length

• d: Flow Port Diameter (Bore size)

• T: Thread Specification (NPT / BSP Female)

(Note: The weight and total length "L" of threaded valves can be slightly lower compared to welded models due to the absence of extended weld-end lips. Certified certified prints are available upon request.)

Technical Specifications

• Pressure Rating: 1000 PSI (WOG 1000) / PN63

• Body Metallurgy: Stainless Steel 304 (CF8), Stainless Steel 316 (CF8M), Carbon Steel (WCB)

• Thread Specifications: NPT (ANSI B1.20.1), BSPT (BS21), BSPP (ISO 228-1), DIN2999

• Seat & Gasket Seals: Premium PTFE / Reinforced RPTFE

• Temperature Range: -20°C to 180°C (-4°F to 356°F)

• Testing Standard: 100% inspected and pressure tested per API 598.
