Product Overview

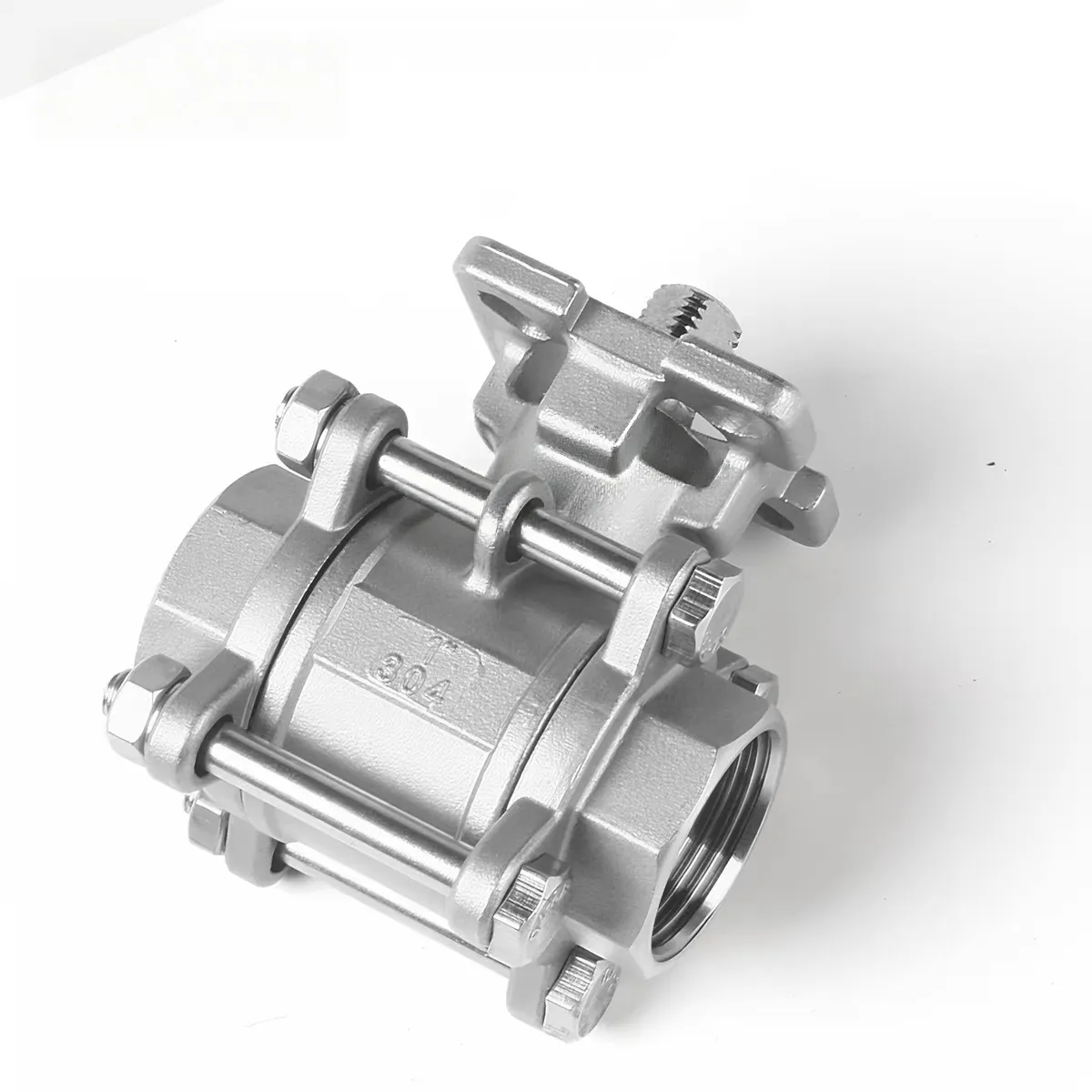

The ISO 5211 Direct Mount 3-Piece Threaded Ball Valve is a highly versatile fluid control solution engineered for seamless integration into automated piping networks. Designed with a built-in ISO 5211 high-platform (mounting pad), this valve allows for the direct installation of pneumatic or electric actuators—completely eliminating the need for bulky brackets, adapters, and extra coupling hardware.

The 3-piece threaded design offers incredible convenience for piping systems. The two female-threaded end caps screw directly onto the pipe threads, while the center section can be easily unbolted and swung out. This allows operators to inspect the valve interior or replace worn seats and seals quickly, minimizing maintenance downtime.

Key Features & Benefits

• ISO 5211 Direct Actuation Platform: The integrated high-pad design guarantees rigid structural stability and precise alignment with actuators. This setup significantly reduces operational hysteresis, saves vertical installation space, and cuts total automation packaging costs.

• In-Line Maintenance (3-Piece Layout): Routine cleaning and seal replacements are incredibly simple. By removing just a few body bolts, the entire center body swings out of the line without requiring the threaded end caps to be disconnected from the pipe.

• Full Port / Full Bore Configuration: Designed with an internal bore size that matches the inner diameter of the pipeline, providing maximum flow rate capacity and minimizing pressure drop.

• Blow-out Proof Stem & Anti-Static Device: Engineered with a bottom-loaded, heavy-duty stem that prevents catastrophic blow-outs under high system pressures. An integrated anti-static device ensures continuous electrical grounding between the ball, stem, and body for safe operation in volatile environments.

• Bubble-Tight Sealing & Low Torque: Utilizes precision-machined PTFE or RPTFE seats to deliver reliable, zero-leakage shut-off while keeping operational torque exceptionally low for longer actuator life.

Technical Drawings & Dimensions

[Technical Diagram Placeholder: Indicating female thread depths, face-to-face dimensions, and ISO pad sizing]

(Note: Complete dimensional data sheets, torque value charts, and ISO pad hole patterns for all sizes can be provided or customized upon direct request.)

Target Applications

Because of its compact footprint, modular structure, and easy thread-on installation, this valve is highly recommended for:

• Industrial Automation Control: Serving as the foundational automated control valve for pneumatic/electric loops in assembly plants.

• Chemical & Petrochemical Systems: Safe and reliable isolation of chemical solvents, acids, and process fluids.

• Water Treatment & RO Systems: Ideal for water filtration plants, reverse osmosis machinery, and commercial plumbing.

• Food, Beverage & Pharma Utilities: Used in secondary utility lines (steam, compressed air, and water supply) where easy cleaning and maintenance are essential.

• OEM Machinery Engineering: Easily integrated directly into manufactured machinery skid units and compact utility blocks.
