Product Overview

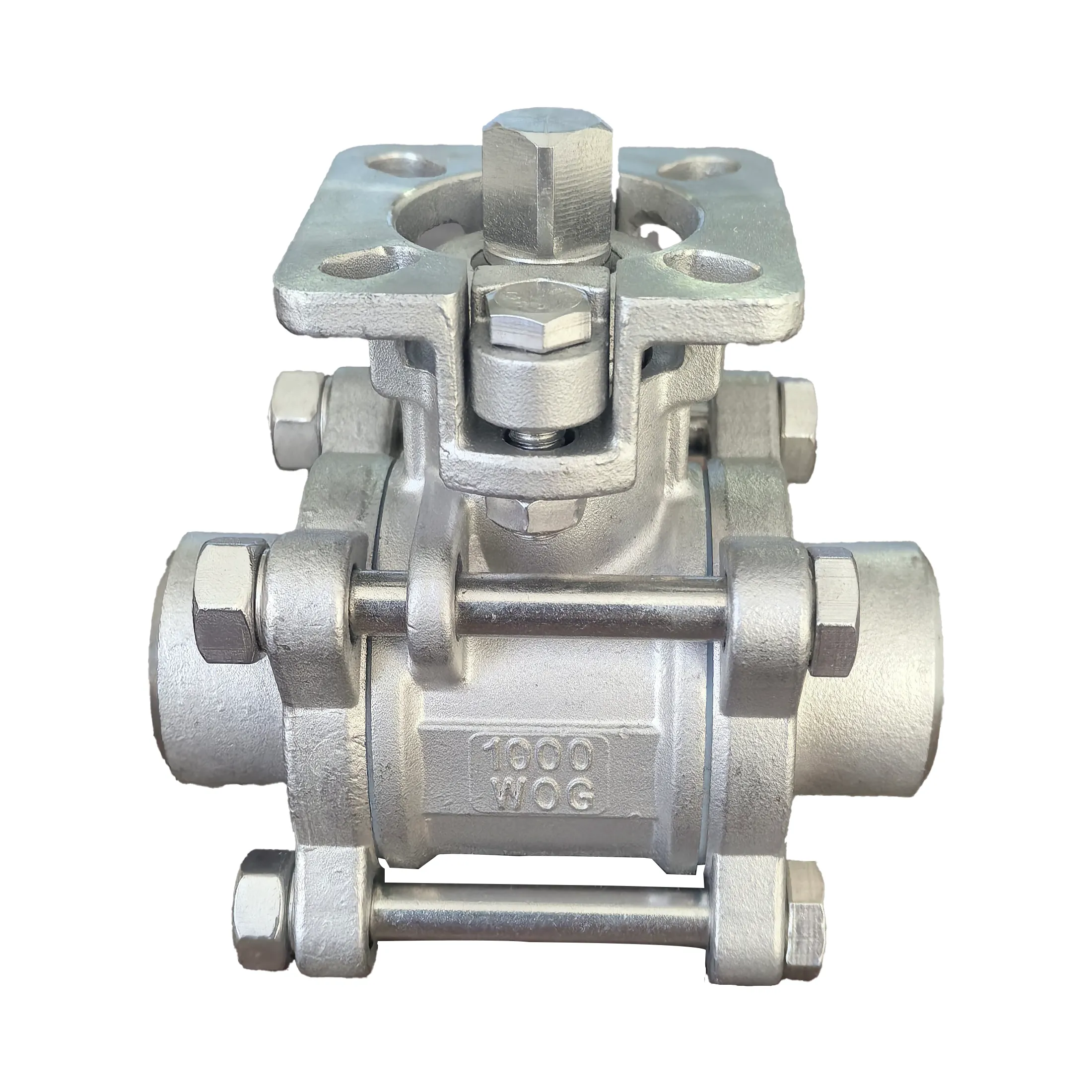

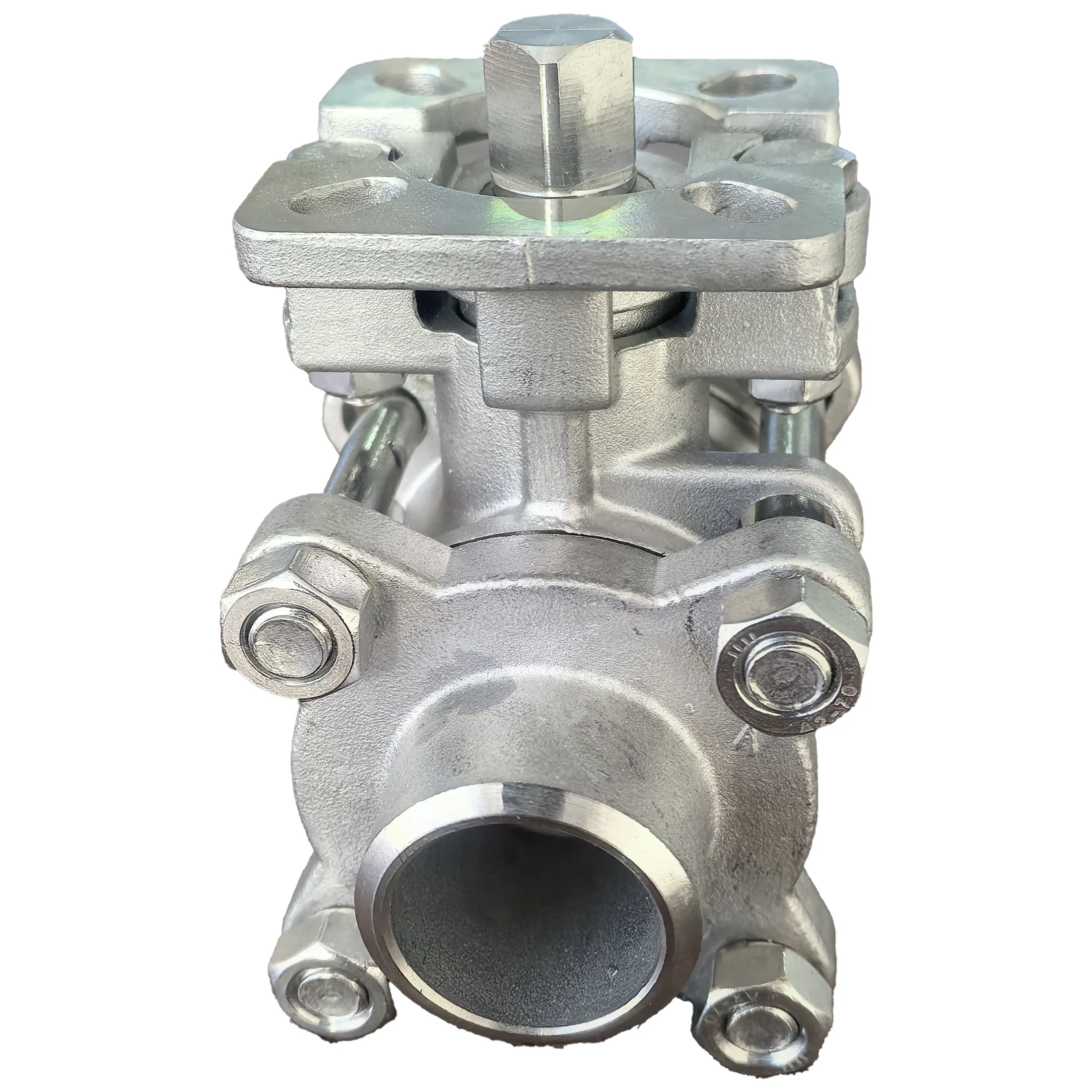

The ISO 5211 Direct Mount 3-Piece Welded Ball Valve is engineered for high-integrity, high-pressure industrial piping systems where zero-leakage permanent connections are critical. Featuring an integrated high-platform (mounting pad) according to ISO 5211 standards, this valve allows for the direct installation of pneumatic or electric actuators without requiring bulky brackets or couplings.

The innovative 3-piece swing-out design provides a massive advantage for welded piping networks: it allows the technician to unbolt and remove the center body section before welding, completely protecting the internal PTFE seats and seals from thermal damage during pipeline installation.

Key Features & Benefits

• Heat-Protected 3-Piece Structure: By simply removing the body bolts, the center section can be swung out or completely detached. This allows the end caps to be welded directly onto the pipe without risking heat damage to the soft seats and seals.

• Leak-Free Permanent Connection: Available in both Butt Weld (BW) and Socket Weld (SW) configurations, eliminating the risks of thread loosening or gasket failure caused by pipeline vibration or thermal expansion.

• ISO 5211 Direct Actuation Platform: Engineered with a rigid, integrated high-pad that ensures precise alignment with actuators, reduces operational hysteresis, saves space, and significantly lowers automation setup costs.

• Full Port / Full Bore Design: The valve interior perfectly matches the pipe inner diameter, providing an unrestricted flow path, maximizing flow capacity, and reducing pressure drops.

• Safety & Reliability: Equipped with a bottom-loaded, blow-out proof stem and a built-in anti-static device to guarantee operational safety in high-pressure or volatile environments.

Technical Drawings & Dimensions

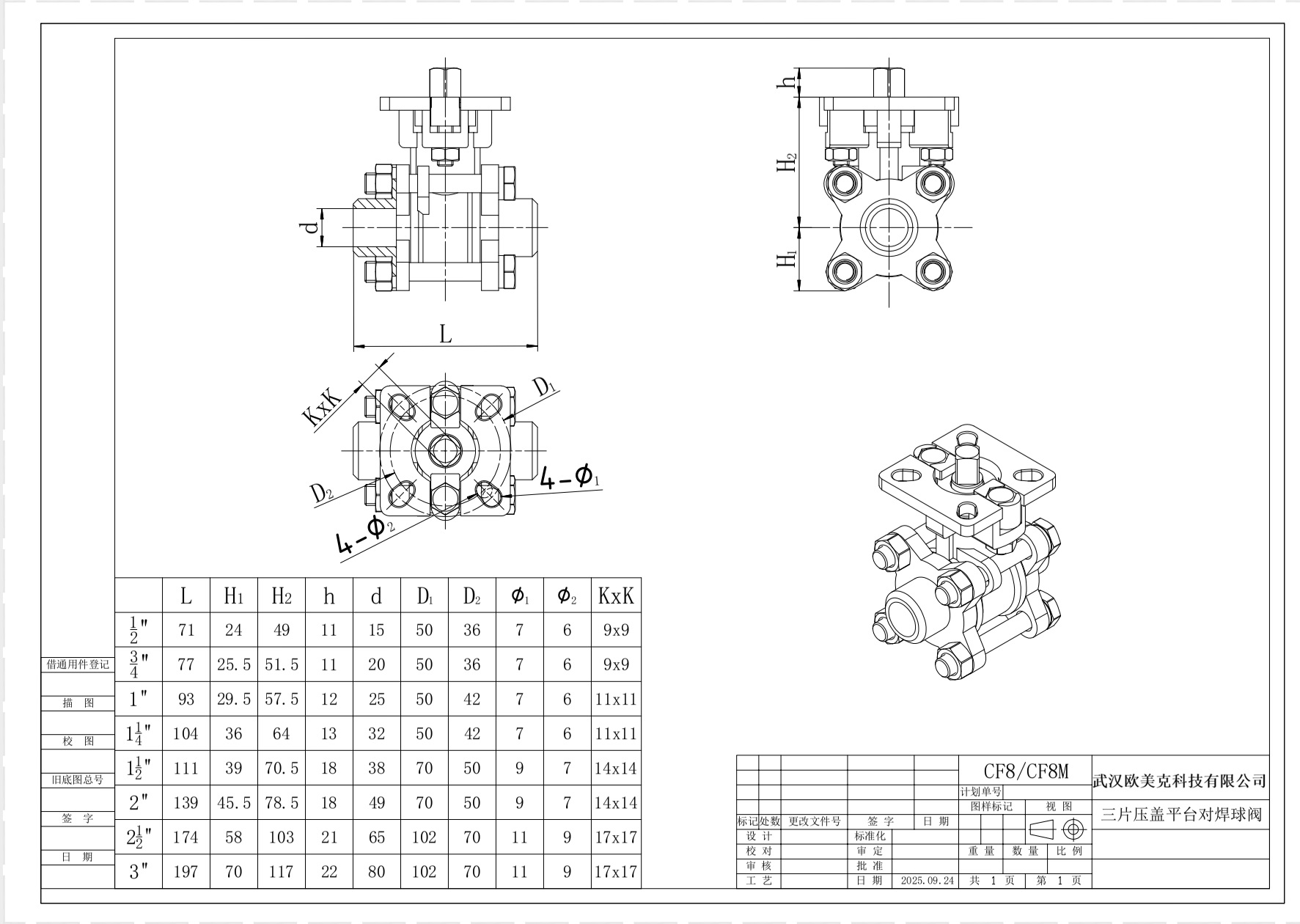

[Technical Diagram Placeholder: Outlining BW/SW end dimensions, body bolts, and ISO pad geometry]

(Note: Complete dimensional specification tables—including face-to-face dimensions, weld-end depths, and torque charts—can be fully customized or provided upon inquiry.)

Industrial Applications

Designed for harsh, heavy-duty, and automated environments, this valve is widely adopted across:

• Chemical & Petrochemical Processing: Handling toxic, hazardous, or highly volatile media where external leakage must be absolutely prevented.

• High-Pressure Fluid Systems: Industrial utility piping lines subjected to high vibrations or heavy thermal cycles.

• Steam & Thermal Energy: Safe control over low-to-medium pressure steam lines when configured with PPL or high-temp seals.

• Automated Production Lines: Serves as the high-reliability base valve for pneumatic and electric automated control networks.

• Water Treatment & Desalination: Highly corrosion-resistant stainless steel variants are ideal for high-pressure RO (Reverse Osmosis) piping.
