Product Overview

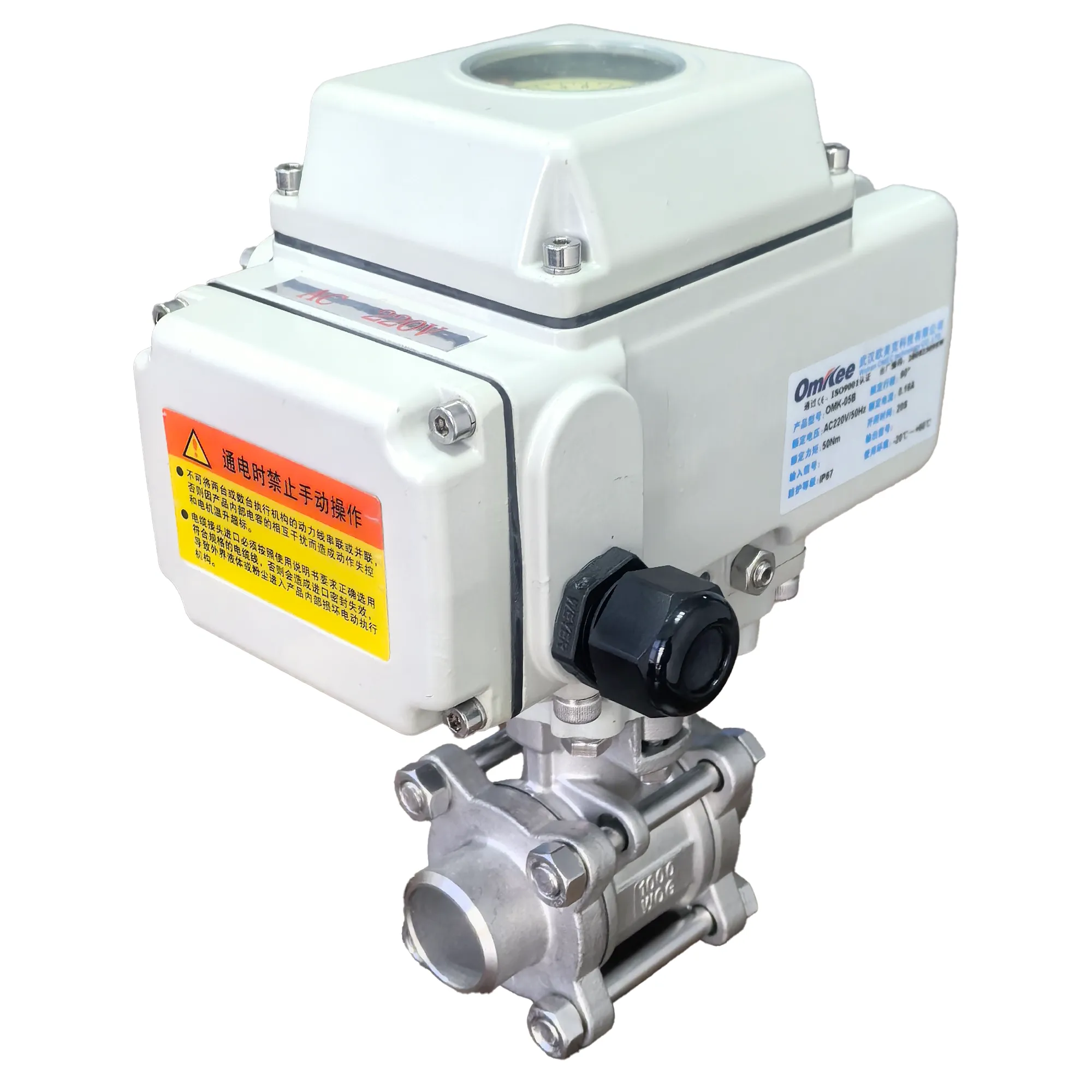

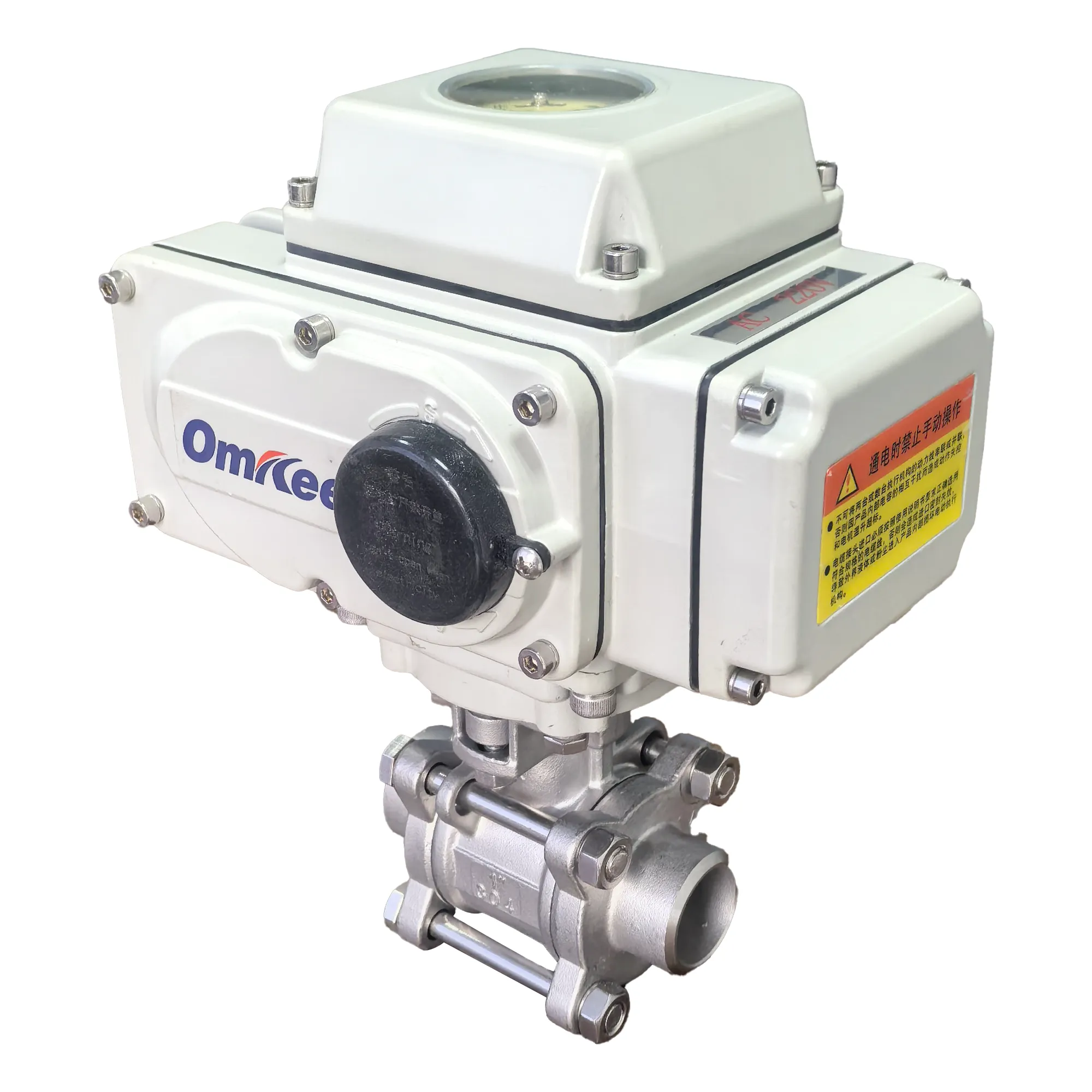

The Electric Welded Ball Valve is an advanced, automated pipeline fluid control solution engineered for industries demanding zero-leakage, high structural integrity, and exceptional reliability. By combining a premium stainless steel (SS304/SS316L) fully-welded or butt-welded valve body with a versatile, heavy-duty intelligent electric actuator, this valve eliminates the risk of joint leakage common with flanged connections. Built to withstand pipeline pressures up to 1.6 MPa and operating seamlessly in harsh environments, it offers precise remote modulation or quick on-off isolation for a vast array of fluid process media.

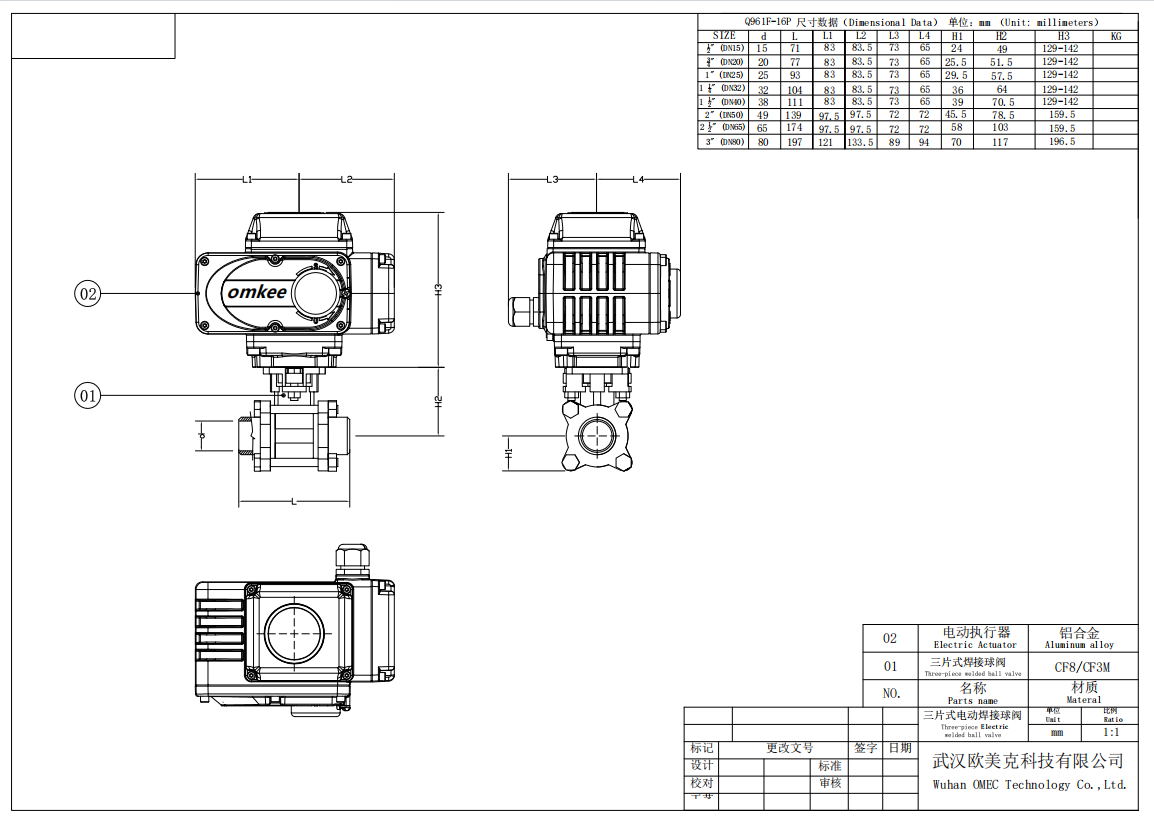

I. Valve Body Technical Specifications

The mechanical valve assembly is designed to fulfill rigorous fluid dynamics and pressure containment standards, ensuring absolute safety and minimal maintenance.

• Valve Core & Body Material: Stainless Steel 304 (CF8) / Stainless Steel 316L (CF3M) (for superior chemical resistance and high-purity media applications)

• Pipeline Connection Type: Welded Type (Butt-weld / Socket-weld connection for a fully sealed, leak-proof piping system)

• Nominal Pipeline Pressure: 1.6 MPa (16 Bar / PN16)

• Ambient Working Temperature: -30℃ to +60℃ (Excellent low and high-temperature thermal resilience)

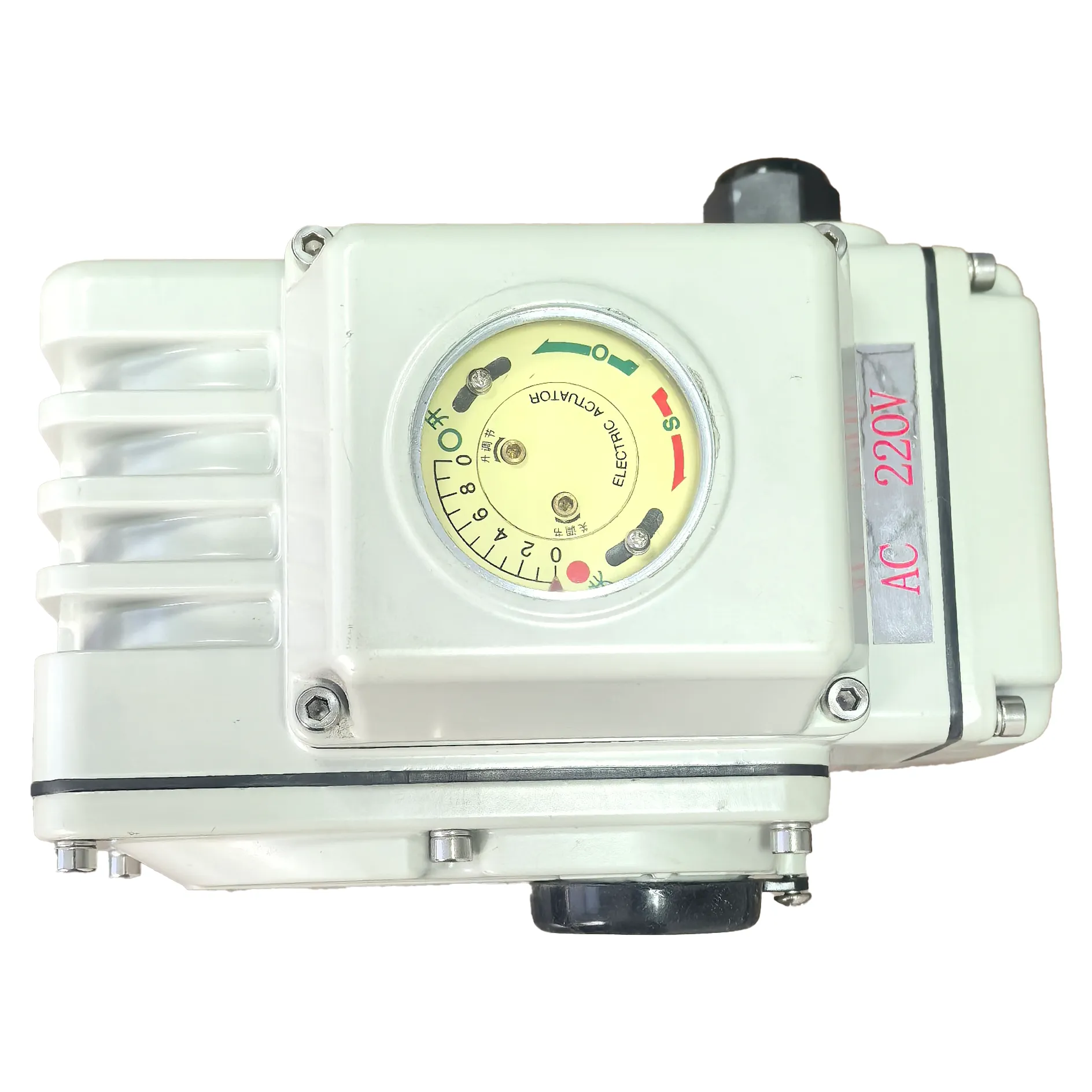

II. Electric Actuator Specifications & Control Features

The integrated high-end electric actuator features an ultra-compact footprint, high torque efficiency, and exceptional electronic reliability built to international industrial criteria.

• Product Compliance Standard: JB/T8219-1999 (Industrial-process measurement and control instruments - Electric Actuators)

• Wide Voltage Options: AC24V / AC110V / AC220V / AC380V / DC12V / DC24V

• Ingress Protection Rating: IP67 (Fully waterproof, dustproof, and weather-resistant enclosure suitable for outdoor installations)

• Circuit Control Types (Flexible Automation Layouts):

  • Type A: Standard AC On-Off type with passive/dry contact signal feedback.

  • Type B: DC On-Off type with passive/dry contact signal feedback.

  • Type C: Intelligent Modulating type (Accepts 4-20mA / 1-5V / 0-10V control signals for variable positioning).

  • Type D: Multi-turn / High-torque automation configuration.

  • Type E / F / G / H:Custom electronic configurations including feedback potentiometer type, active contact feedback, explosion-proof integrations, and advanced smart bus communication protocols (Modbus/Profibus).

III. Key Advantages & Engineering Features

• Zero Leakage Integrity: The welded connection profile guarantees a permanent, seamless joint with the pipeline, perfectly preventing leakage under severe vibration or thermal contraction.

• Superior Metallurgy: Fabricated using premium-grade 304/316L stainless steel to avoid rust, preserve fluid purity, and resist corrosive chemical degradation.

• Versatile Automation: Equipped with diverse power supply ranges (from DC12V to three-phase AC380V) and 8 distinct circuit configurations (Type A to H) to seamlessly integrate into any DCS, PLC, or smart building automation network.

• All-Weather Performance: The heavy-duty IP67 enclosure paired with a broad temperature tolerance (-30°C to +60°C) enables reliable, uninterrupted operation in extreme climatic regions.

IV. Industrial Application Fields

Thanks to its robust electronic controls, ultra-secure structural design, and resilient material configurations, our Electric Welded Ball Valve is widely utilized across the following sectors:

• Chemical & Petrochemical: Safe transport and isolation of corrosive chemical compounds, solvents, and refined products.

• Water & Industrial Waste Treatment: Automated filtration systems, high-pressure wastewater treatment plants, and urban water supply loops.

• District Heating & HVAC: Centralized heating networks, chilled water systems, and large commercial building automation lines.

• Power Plants: High-pressure steam routing, cooling water loops, and auxiliary fluid management in thermal and hydroelectric plants.

• Pharmaceutical & Food Processing: Clean utility lines, gas distribution systems, and cleanroom fluids using the SS316L material configuration.

• Pulp & Paper Mills: Process water automation, black liquor handling, and chemical stock control lines.
