Product Overview

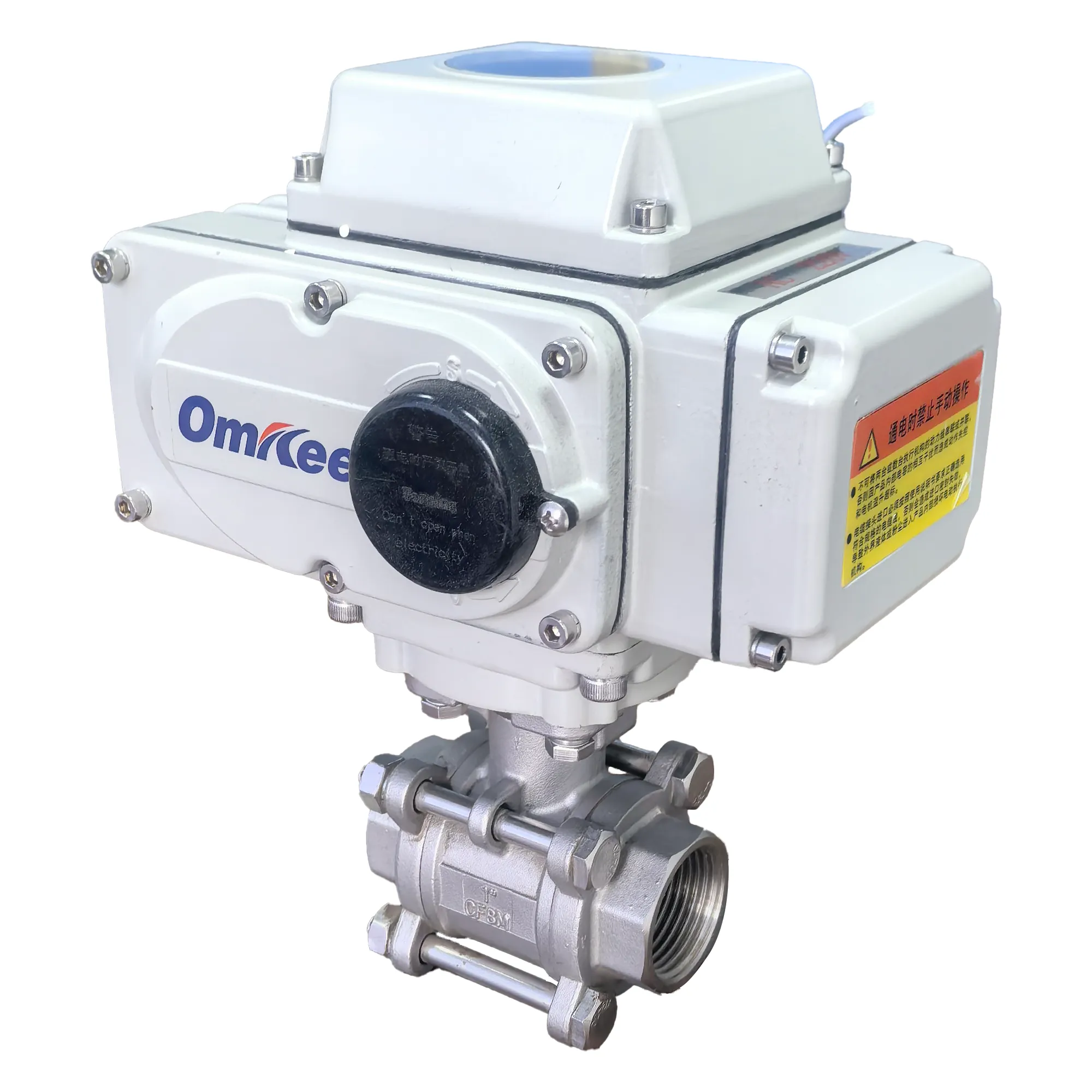

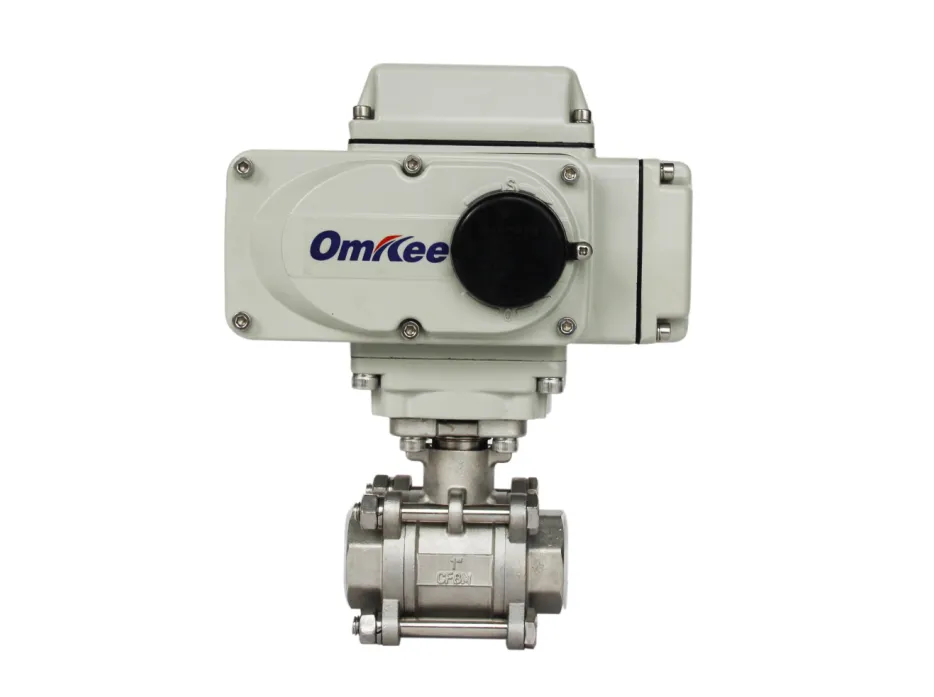

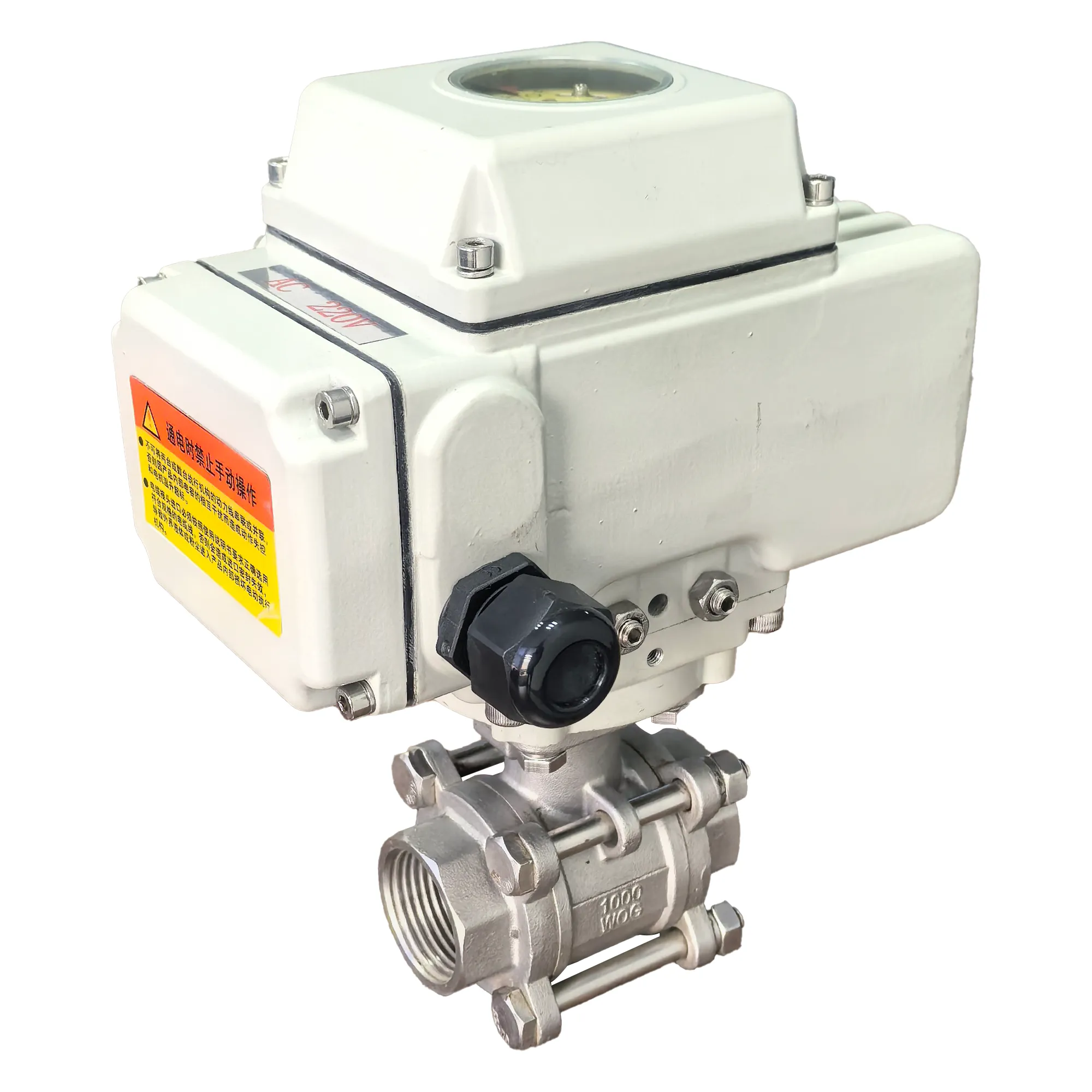

TheElectric Threaded Ball Valve(also known as a Motorized Screwed Ball Valve) is an efficient,compact,and highly reliable fluid automation system engineered for commercial,municipal,and industrial pipelines.This professional-grade package integrates a premium stainless steel (SS304/SS316L) body with a high-torque,versatile electric actuator.Featuring a threaded connection layout for effortless installation and maintenance,this valve is engineered to withstand pressures up to 1.6 MPa.It is highly optimized for precise remote flow regulation,automated batching,and quick on-off isolation across diverse fluid management environments.

I. Valve Body Technical Specifications

The mechanical assembly utilizes precision-machined threads and heavy-duty casting configurations to guarantee tight sealing,easy installation,and minimal pressure drop.

• Valve Body & Ball Material:Stainless Steel 304 (CF8) / Stainless Steel 316L (CF3M)(for exceptional resistance against pitting corrosion and handling of high-purity media)

• Pipeline Connection Type:Female Thread / Screwed Connection(Available in NPT, BSPT, or G thread standards based on regional installation layout requirements)

• Nominal Pipeline Pressure:1.6 MPa (16 Bar / 232 PSI / PN16)

• Ambient Operating Temperature:-30℃ to +60℃(Built to adapt seamlessly to harsh geographical climates and indoor/outdoor installations)

II. Electric Actuator Specifications & Control Features

The integrated quarter-turn electronic actuator features a compact,impact-resistant design that complies fully with advanced industrial control standards.

• Product Compliance Standard:JB/T8219-1999 (Industrial-process measurement and control instruments - Electric Actuators)

• Comprehensive Voltage Options:AC24V / AC110V / AC220V / AC380V / DC12V / DC24V

• Ingress Protection Rating:IP67 (Fully dust-tight and waterproof enclosure,enabling stable performance under heavy rain,humidity,or washdown conditions)

• Circuit Control Types (Flexible Multi-Protocol Interface):

  • Type A:Standard AC On-Off (Switching) type with passive/dry contact position signal feedback.

  • Type B:Standard DC On-Off (Switching) type with passive/dry contact position signal feedback.

  • Type C:Intelligent Modulating type (Accepts 4-20mA / 1-5V / 0-10V control signals for variable positioning and outputs real-time position signals).

  • Type D:Multi-turn / High-torque automated positioning configuration.

  • Type E / F / G / H:Advanced custom configurations including resistance feedback (potentiometer), active contact feedback, explosion-proof housings, and intelligent industrial fieldbus protocols (Modbus RTU / Profibus-DP).

III. Key Features & Industrial Benefits

• Easy Installation & Maintenance:The threaded connection format allows engineers to quickly mount,inspect,or replace the valve without cutting pipelines or requiring heavy flange-welding equipment,drastically reducing system downtime.

• Corrosion-Resistant Metallurgy:Crafted from choice 304 or 316L stainless steel,ensuring zero rust,preserving fluid purity,and extending operational lifespan in acidic,alkaline,or humid process loops.

• Ultimate Control Flexibility:With 6 voltage options and 8 circuit configurations (Type A to H),this valve bridges seamlessly with any standard DCS,PLC,smart building automation,or remote IoT system.

• Robust Weatherproofing: The heavy-duty IP67 housing coupled with a wide temperature range (-30°C to +60°C) allows reliable field operations in extreme weather or heavy industrial environments.

IV. Industrial Application Fields

Thanks to its highly adaptable thread layout, advanced control configurations, and heavy-duty structural build, our Electric Threaded Ball Valve is widely utilized across the following fields:

• Building Automation & HVAC: Chilled and hot water regulation, central commercial air conditioning systems, and district energy loops.

• Water Treatment & Environmental Engineering: Automated chemical dosing, industrial wastewater filtration, pure water purification plants, and urban secondary water supply networks.

• Chemical & Fine Process Manufacturing: Remote transport, chemical sampling lines, and fast isolation of mild acids, solvents, and auxiliary fluids.

• Pharmaceutical, Food & Beverage: Clean utility distribution, process steam lines, clean water delivery, and bulk fluid automation using the high-purity SS316L metallurgy.

• Agricultural Automation & Power Irrigation: Motorized fluid valves for smart greenhouse irrigation, water conservation networks, and automated drainage.

• Industrial Utility Lines: Compressed air systems, lubrication loops, and gas lines inside manufacturing facilities.
